7.0 inch Touch LCD 1024*600 resolution MIPI interface 2 channels

2025-06-29

Size: 7.0 inch

Resolution (Number of Pixels): 1024*600

Viewing direction: ALL

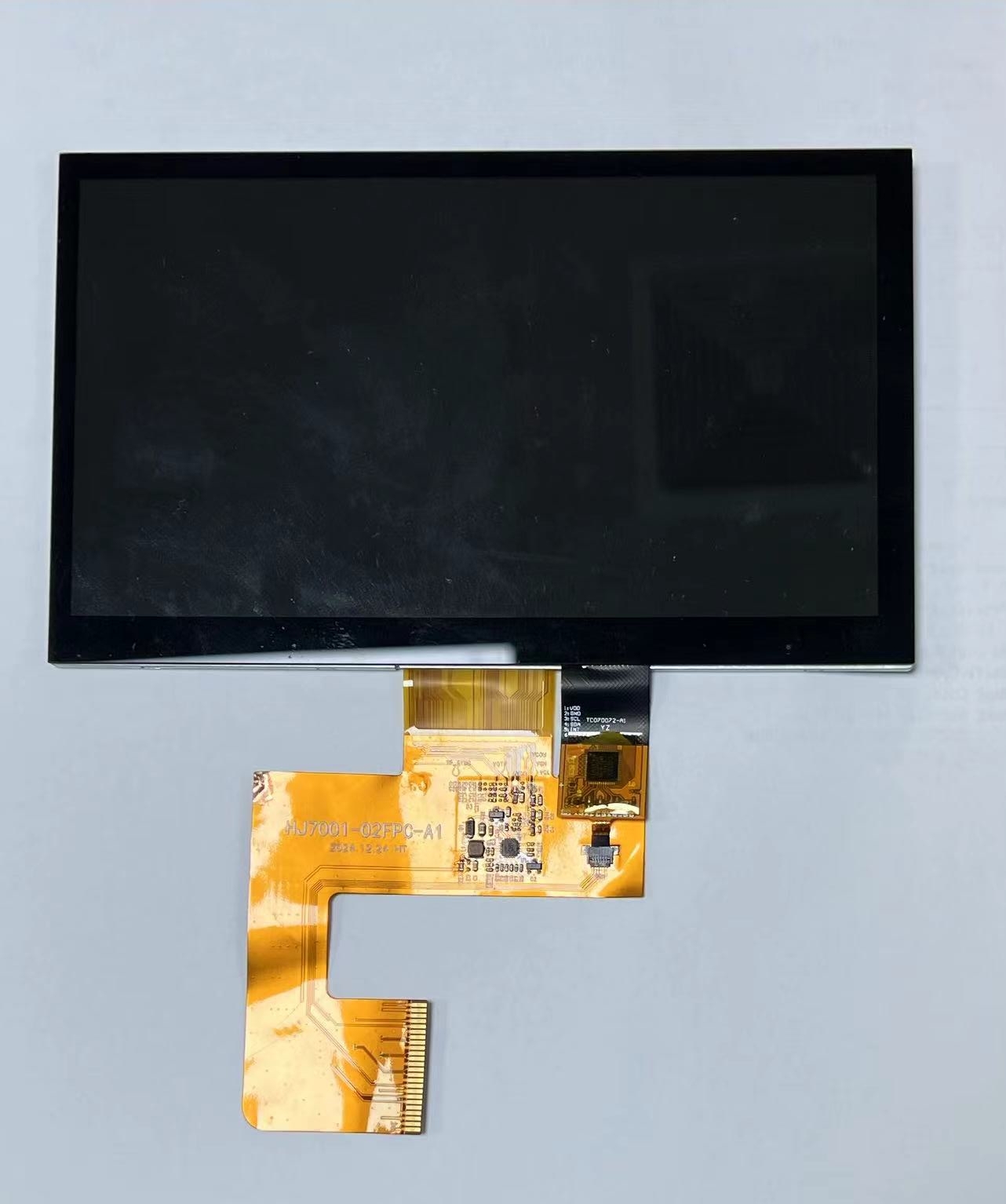

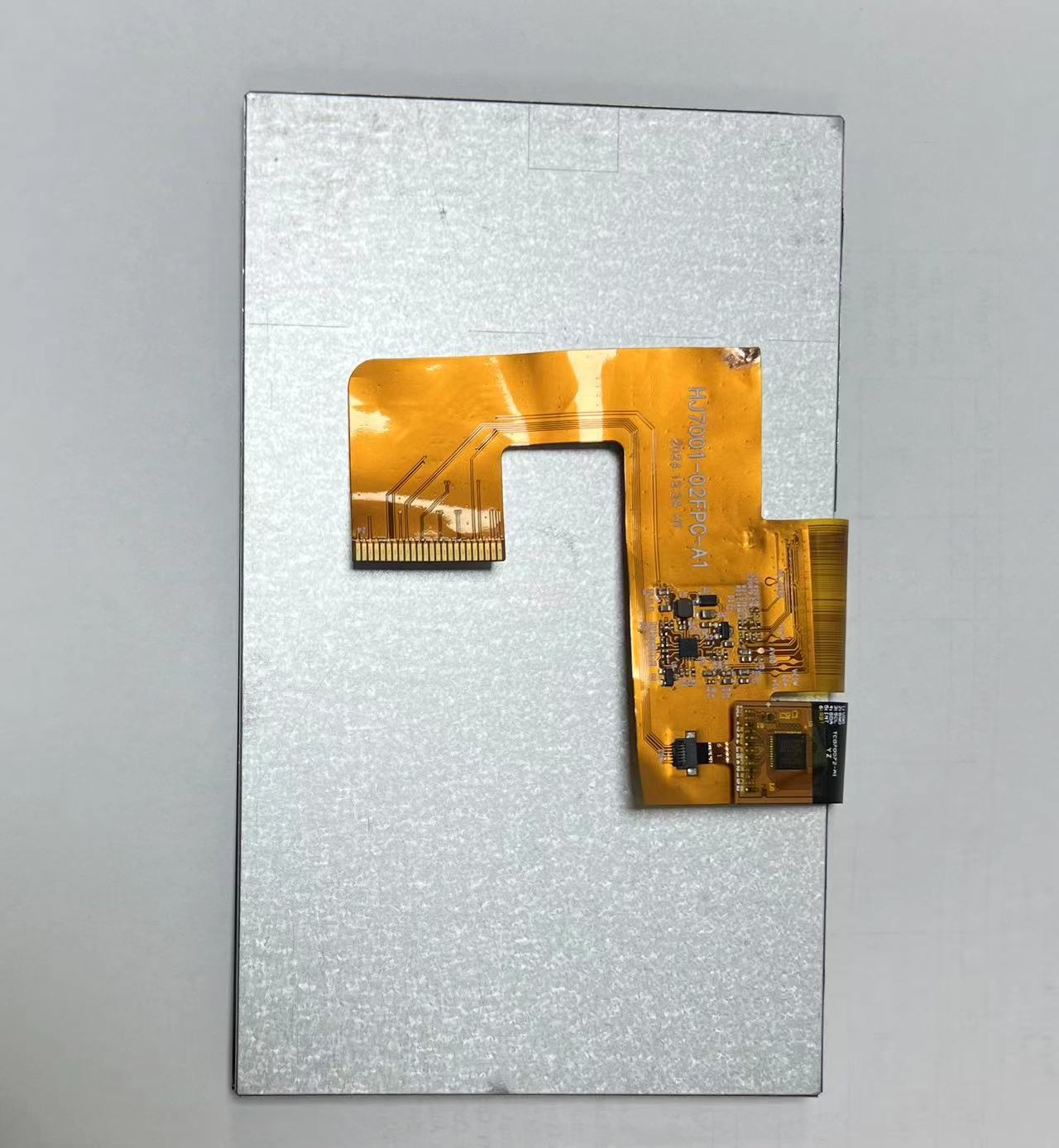

Product Introduction: HJ7001-02 is a 7 inch touch lcd screen, 1024*600 resolution, the market mainstream is 4 channels, our company has developed a 2-channel MIPI interface, suitable for CPUs that support 2 channels, with a universal touch chip of multi-point touch screen GT911, which can be applied to industrial equipment, handheld testing instruments, handheld POS machines, smart homes, consumer electronics and other products. Our company can provide customization.

TFT LCD MODULE parameter：

Part No	HJ7001-02	Interface type	MIPI
Size	7.0 inch	Display Mode	Transmissive/IPS
Number of Pixels	1024 × 600	Number of pin	24
Viewing direction	ALL	Connecting type	Plugging type
Active Area	154.21x85.92	Luminance	500cd/㎡ /Brightness is selectable
Dimensional Outline	164.8x99.9x2.8	Backlight leds	20
LCM Driver IC	JD9165	Backlight type	white LED backlight
Contrast Ratio	1000	operating temperature	-20----70°C
Display Colors	16.7M	Storage Temperature	-30----80°C

Capacitive Touch Display parameter：

Part No	HJ7001-02	Touch mode	Projective capacitive touch screen
Outline size	164.8×99.9×4.5	Touch Interface	I2C
Active Area	154.21×85.92	Touch Driver IC	GT911
Transparency	≥87%	Hardness	≥7H
Structure	G+G	Cover material	Glass
Number of pin	6	Touch point	Multi touch and Gestures
