Analysis of Application Scenarios for 7-inch IPS Landscape Screen with 1024×600 Resolution, MIPI 2-Channel, 24-PIN Capacitive Touchscreen

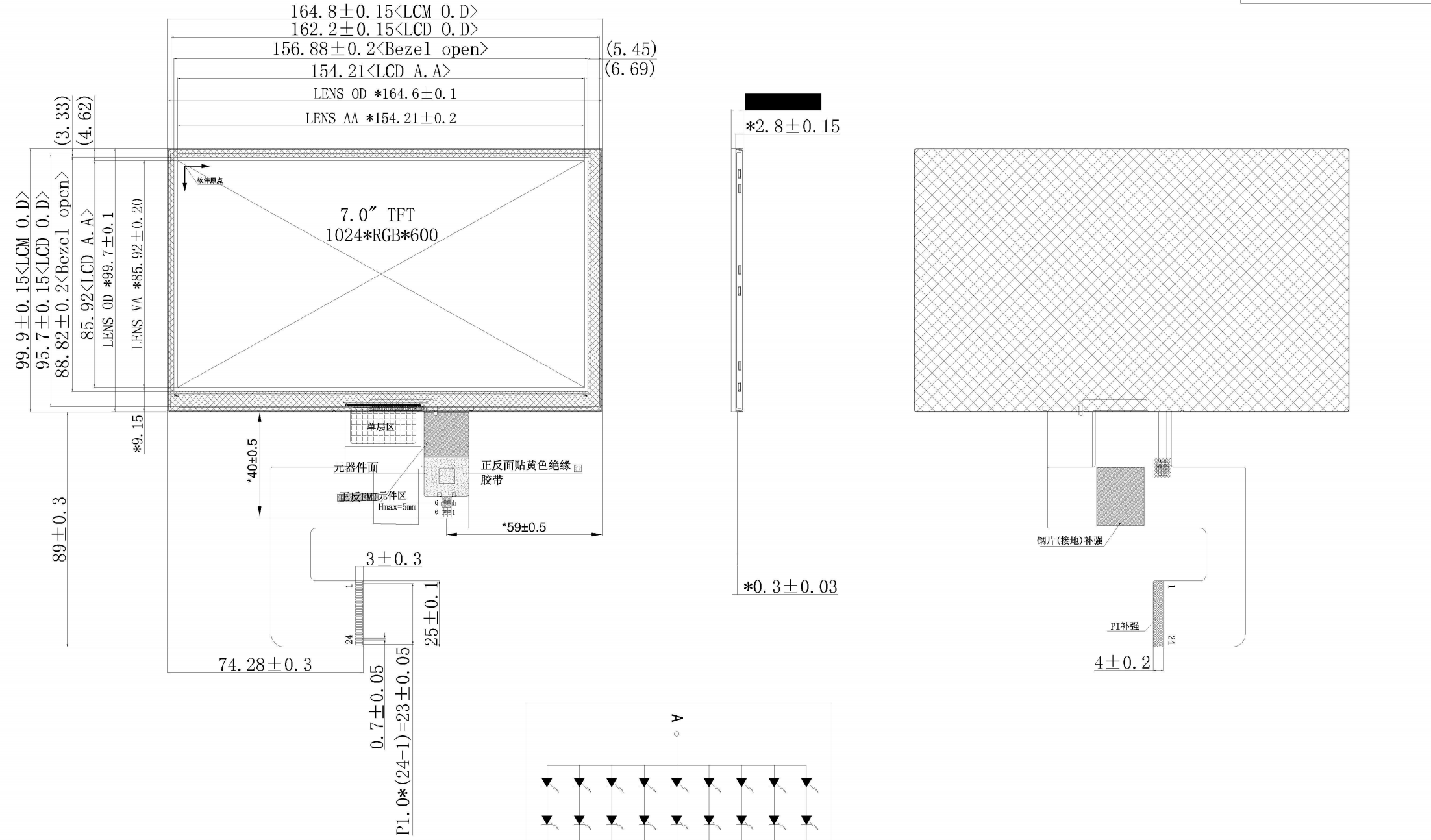

       7-inch TFT landscape screens typically have a 1024*600 resolution and a 4-channel MIPI interface. 2-channel LCD screens are rare, and those integrating the capacitive touchscreen cable with the LCD screen cable are even rarer, increasing the workload for hardware engineers. Shenzhen Hongjia Technology engineers have successfully mass-produced 7-inch IPS landscape screens with a 1024*600 resolution, a 2-channel MIPI interface, and a capacitive touchscreen. The 24-PIN connector integrates the touchscreen and display signals, with a single cable interface for easier customer design.

       7 inches, 1024×600 (approximately 15:9 aspect ratio, close to 16:9). This is a typical entry-level to mid-range display specification, cost-effective, and capable of meeting most basic graphical interface display needs, but its pixel density (approximately 169 PPI) is not as high as higher resolution screens. IPS (In-Plane Switching) offers advantages such as wide viewing angles, good color reproduction, and high consistency. Regardless of the viewing angle, color and brightness attenuation are minimal, making it ideal for applications requiring multiple viewers or operation from different angles (such as industrial control, smart home control systems, and portable devices).

Advantages and Applicable Scenarios:

1. Cost-Performance Balance: This combination offers excellent value. IPS provides a superior viewing experience, while MIPI saves board space and power consumption. Two channels provide sufficient bandwidth at 1024×600@60Hz.

2. Preferred for Embedded and Portable Devices:

A. Industrial HMI: Industrial touchscreens, instrument interfaces; the wide viewing angle of IPS allows operators to see clearly from different positions.

B. Smart Home Control: Home control panels, smart gateway displays; the MIPI interface facilitates device miniaturization.

C. Portable Medical Devices: Handheld testing instruments with high power consumption and reliability requirements.

D. Automotive Aftermarket/Auxiliary Displays: Such as reversing cameras, rear-seat entertainment systems (note automotive-grade requirements).

E. Commercial Devices: POS machines, self-service terminals, queuing systems.

F. Low-Power IoT Devices: Advanced information display terminals. 3. Bandwidth Requirements Analysis: Calculate the approximate bandwidth required.

3 Pixel Clock ≈ (Horizontal Pixels + Blanking) × (Vertical Rows + Blanking) × Refresh Rate. Simplified estimate: 1024×600@60Hz, RGB888 (24-bit color depth).

Data Rate ≈ 1024 × 600 × 60 × 24 ≈ 884 Mbps. The typical theoretical bandwidth of MIPI DSI 2 lanes is over 1 Gbps (depending on the specific clock frequency), sufficient to smoothly drive this resolution with a certain margin.

      In summary, a 7-inch IPS (1024×600) landscape display with MIPI 2 lanes is a mature solution that achieves an excellent balance in cost, display effect, power consumption, and space occupation. It is very suitable for various mid-range embedded display applications, especially in scenarios requiring wide viewing angles, color consistency, and space saving.
