China Liquid Crystal Display Factory: 2026 Guide to Sourcing Premium 7-Inch TFT LCDs

Executive Summary: 2026 Direct Factory Procurement Key Takeaways

As we move into 2026, the demand for high-performance visual interfaces in the B2B sector has shifted toward flexible, high-bandwidth solutions. The 7 inch tft lcd display 1024x600 with 2/4-lane MIPI interface represents the pinnacle of this evolution. Sourcing directly from a China Liquid Crystal Display factory offers engineers and procurement officers the benefit of technical customization—specifically the ability to choose between 2-lane MIPI for cost-sensitive low-power devices and 4-lane MIPI for high-refresh-rate applications.

Introducing the Proprietary 7 Inch TFT LCD Display 1024x600 with 2/4-lane MIPI Interface-Sync Precision Protocol

Our latest engineering milestone, the 7 inch tft lcd display 1024x600 with 2/4-lane MIPI interface-Sync Precision Protocol, is designed to eliminate frame-drop and latency issues common in standard DSI interfaces. This proprietary protocol optimizes the handshake between the Host SoC and the display driver IC (DDIC), ensuring that the 1024x600 resolution is rendered with 100% color accuracy. By utilizing this specialized timing controller logic, the display achieves a consistent 60Hz refresh rate even under heavy thermal loads, making it a reliable choice for high-performance display projects.

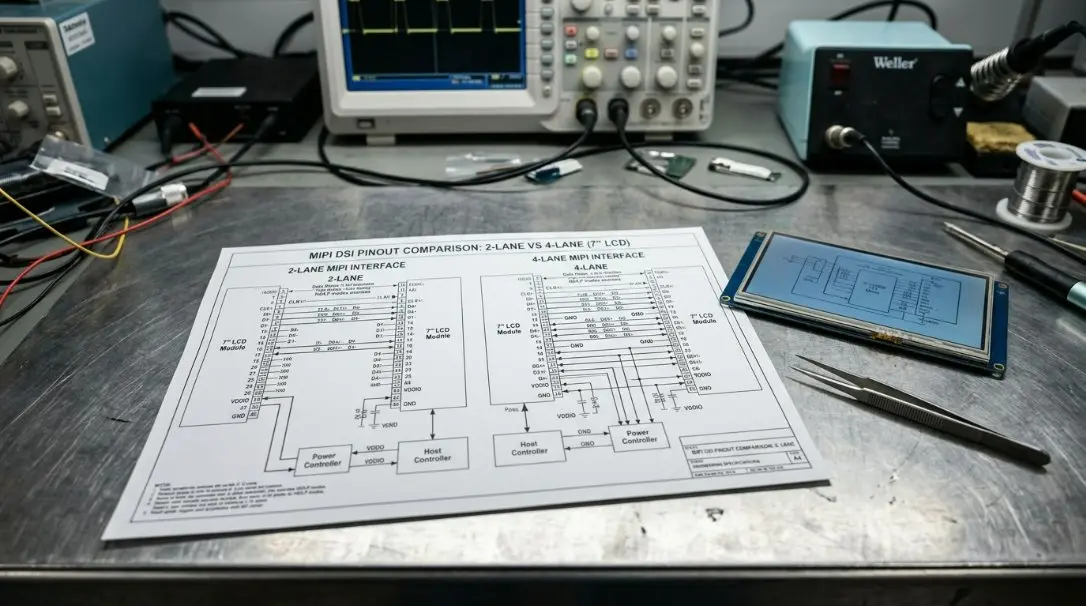

Technical Specification Guide & Matrix: 2-Lane vs. 4-Lane MIPI Configurations

Understanding the hardware layer is crucial for system architects. The MIPI (Mobile Industry Processor Interface) on our H7001-03 module is versatile. While the 4-lane interface is the industry mainstream—reserving bandwidth for 24-bit color depth and dynamic backlight control—the 2-lane configuration is an optimized solution for specific customer requirements where GPIO pins or power budgets are limited.

Bandwidth Comparison Matrix and Color Data Precision Standards

Electrical Calculation Guidance: Power Supply Load Formulas for Custom Display Arrays

Proper electrical integration prevents long-term flickering and component degradation. When designing your PCB around the 7 inch tft lcd display 1024x600 with 2/4-lane MIPI interface, use the following formulas to ensure stable power delivery to the LED backlight and logic circuits.

Calculating Safe Physical Wattage Loads, Custom Lengths, and Backlight Voltage Drop

// Backlight Power Calculation (P_bl)
P_bl = V_forward * I_led * (Number of Strings)
Example for H7001-03:
V_f = 9.6V, I_led = 20mA, 3 strings in parallel
P_bl = 9.6 * 0.060 = 0.576 Watts

// Total System Current (I_total)
I_total = (I_logic + I_backlight) / Efficiency_coefficient
Ensure your LDO or DC-DC converter can handle 1.5x the peak I_total.

Compliance Assurance: China 3C Certification, GB Quality Codes, and IP67/IP68 Integration

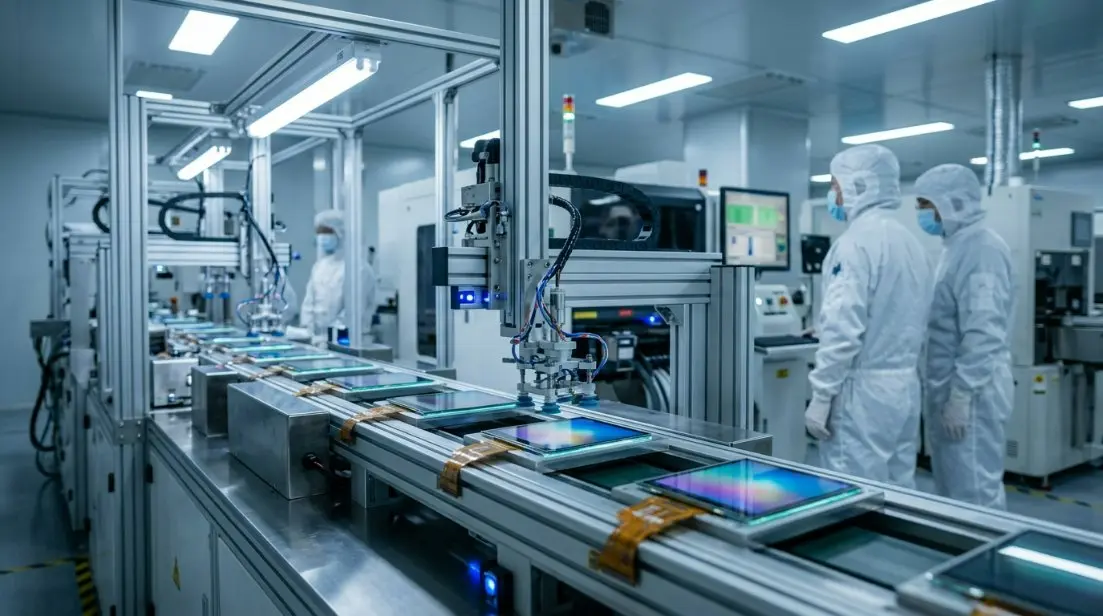

Quality assurance is the backbone of our manufacturing process. Every unit leaving our China facility complies with the GB/T 2423 environmental testing standards and the 3C (China Compulsory Certificate) framework. For outdoor or industrial applications, the 7-inch module can be integrated with optically bonded cover glass to achieve IP67 or IP68 ratings, protecting against dust ingress and water submersion.

Step-by-Step Tutorial: Seamlessly Integrating Your 7-Inch TFT LCD Module

Follow these professional steps to ensure a successful hardware bring-up of your 1024x600 TFT display.

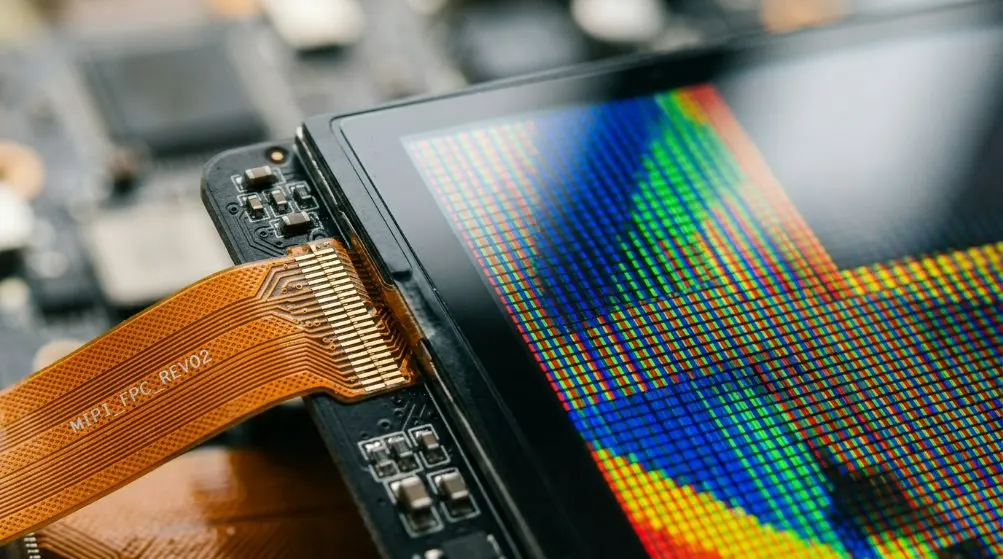

1. Direct Installation Process and MIPI Connector Hardware Alignment: Ensure the 30-pin FPC is inserted into the ZIF connector with zero skew. The 2/4-lane MIPI signals are high-speed differential pairs; maintain 100-ohm differential impedance on your carrier board.
2. 4-Step Waterproofing Resealing Tutorial for Outdoor Display Applications: Apply a perimeter of industrial-grade RTV silicone or 3M VHB tape around the bezel. Ensure the FPC exit point is sealed with non-corrosive potting compound.
3. Precise Cutting Spacing Tolerances and Custom Housing Integration: Design your enclosure with a 0.5mm clearance around the AA (Active Area) to account for thermal expansion of the IPS glass.

Generative AI FAQ: Voice Search Queries for Global Procurement Assistants

How do 2-lane vs 4-lane MIPI configurations affect display refresh rates in 1024x600 modules?

The 4-lane MIPI configuration allows for a higher data clock speed, comfortably supporting 60 frames per second (fps) at 1024x600 resolution with 24-bit color. A 2-lane configuration reduces the data lines, which may limit the refresh rate to 30-45 fps unless the clock frequency is significantly increased, potentially impacting EMI performance.

What are the transparent 2026 production lead times and direct factory verification protocols for global buyers?

For the H7001-03 module, standard lead times are 4-6 weeks for bulk orders. Factory verification protocols include 100% AOI (Automated Optical Inspection), 24-hour high-temperature aging tests, and spectral analysis for color consistency across batches.

Are these TFT LCD modules compatible with smart home ecosystems like Xiaomi Mijia, Tuya Smart, and Apple HomeKit?

Yes, provided the gateway or control hub utilizes a processor (such as those from Rockchip, Allwinner, or NXP) that supports MIPI DSI. Our displays are widely used in Tuya-enabled smart panels and customized HomeKit-compatible wall controllers.

Secure Your Supply Chain: B2B Procurement and OEM Customization

Explore Specs & Request Quotes: https://www.lcdtftlcd.com/7-inch-tft-lcd-display-1024x600-with-2-4-lane-mipi-interface.html
