What is a 3.1 inch TFT LCD RGB Interface and Why Is It Critical for Embedded Display Design?

The 3.1 inch TFT LCD with RGB interface is widely used in embedded systems, industrial control panels, medical devices, handheld instruments, and consumer electronics. This article provides a deep technical and practical understanding of how this display works, why RGB interface matters, how it integrates into systems, and what challenges engineers face during design and deployment. It also explains selection criteria, common pitfalls, troubleshooting strategies, and real-world applications to help developers and product designers make informed decisions.

Table of Contents

• 1. Introduction to 3.1 inch TFT LCD RGB Interface
• 2. Understanding TFT LCD Technology
• 3. What Makes RGB Interface Special?
• 4. System Architecture and Signal Flow
• 5. Key Technical Specifications Explained
• 6. Advantages of RGB Interface Displays
• 7. Limitations and Engineering Challenges
• 8. Applications in Real-World Devices
• 9. Design and Integration Guidelines
• 10. Comparison with Other Interfaces
• 11. Troubleshooting Common Issues
• 12. Selection Guide for Engineers
• 13. Frequently Asked Questions
• 14. Conclusion and Contact Information

1. Introduction to 3.1 inch TFT LCD RGB Interface

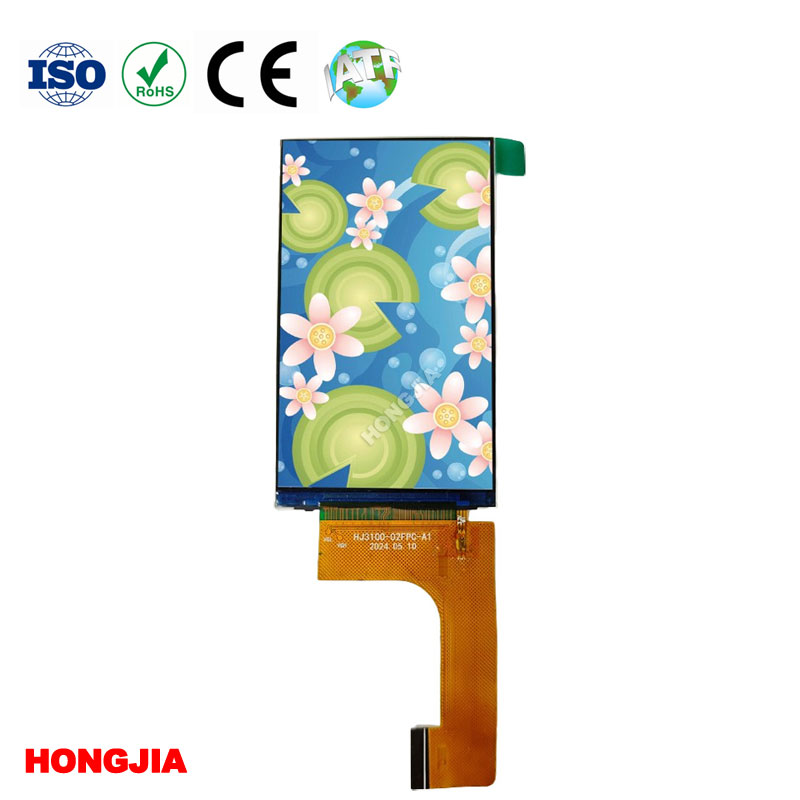

The 3.1 inch TFT LCD RGB interface is a compact display solution designed for embedded systems requiring high-quality visual output in a small footprint. TFT (Thin Film Transistor) technology enables active matrix control, ensuring sharp images, fast response times, and accurate color reproduction.

Unlike serial interfaces such as SPI or I2C, the RGB interface transmits pixel data in parallel, making it capable of supporting higher refresh rates and smoother graphical performance. This makes it particularly suitable for applications where real-time visual updates are essential.

2. Understanding TFT LCD Technology

TFT LCDs are a type of active matrix LCD that use thin-film transistors to control each pixel individually. This structure improves contrast, reduces crosstalk, and enhances overall image stability.

Key components include:

• Liquid crystal layer for light modulation
• Backlight unit for illumination
• Color filters for RGB representation
• Thin-film transistor matrix for pixel control

The 3.1 inch size is often chosen for portable devices where space is limited but visual clarity is still essential.

3. What Makes RGB Interface Special?

The RGB interface is a parallel data transmission method that sends red, green, and blue color signals simultaneously. Each pixel is defined by a combination of these three signals, allowing precise color control.

Core characteristics:

• Parallel data transmission (8/16/18/24-bit RGB)
• High refresh capability
• Low latency visual updates
• Direct pixel mapping from controller to display

Because it bypasses complex serial decoding, RGB interfaces are widely used in performance-sensitive embedded systems.

4. System Architecture and Signal Flow

A typical 3.1 inch TFT LCD RGB system consists of a microcontroller or processor, display driver IC, and the LCD panel itself.

Signal flow process:

1. CPU/GPU generates frame buffer data
2. RGB signals are output via parallel GPIO or LCD controller
3. Synchronization signals (HSYNC, VSYNC, DE) align frame timing
4. TFT panel receives pixel data line by line
5. Display driver updates pixel matrix accordingly

Timing accuracy is critical. Any mismatch in synchronization signals can lead to flickering, tearing, or distorted images.

5. Key Technical Specifications Explained

Understanding specifications helps ensure proper system integration:

6. Advantages of RGB Interface Displays

The RGB interface offers several performance advantages that make it a preferred choice for embedded systems.

• High refresh performance: Ideal for real-time graphics
• Low latency: Direct pixel transfer minimizes delay
• Better image quality: No compression artifacts
• Hardware simplicity: Straightforward display controller design

These advantages are especially important in applications such as medical monitoring, industrial dashboards, and portable testing equipment.

7. Limitations and Engineering Challenges

Despite its advantages, RGB interface design comes with challenges.

• Requires many GPIO pins (high pin count)
• Complex PCB routing for signal integrity
• Higher EMI sensitivity
• Limited scalability for large displays

Engineers must carefully design layout and grounding strategies to avoid noise interference and timing errors.

8. Applications in Real-World Devices

The 3.1 inch TFT LCD RGB interface is widely adopted across industries:

• Industrial control panels
• Handheld medical diagnostic tools
• Smart home control interfaces
• Portable measurement instruments
• Consumer electronics (GPS, POS terminals)

Its balance of size, performance, and cost makes it highly versatile.

9. Design and Integration Guidelines

To ensure optimal performance, engineers should follow these design principles:

• Maintain strict timing synchronization for HSYNC and VSYNC
• Use impedance-controlled PCB traces
• Keep signal lines as short as possible
• Apply proper power decoupling capacitors
• Optimize firmware refresh rates

Proper implementation ensures stable display performance and long-term reliability.

10. Comparison with Other Interfaces

RGB remains the preferred choice for compact, high-speed embedded visualization systems.

11. Troubleshooting Common Issues

Common problems include:

• Flickering display due to timing mismatch
• Incorrect colors from misconfigured bit depth
• Blank screen caused by missing synchronization signals
• Noise interference from poor grounding

Solutions:

• Verify clock and sync signal timing
• Check firmware configuration settings
• Improve PCB layout and shielding
• Use proper voltage regulation

12. Selection Guide for Engineers

When choosing a 3.1 inch TFT LCD RGB module, consider:

• Resolution requirements of your application
• Available MCU or processor interface capability
• Power consumption constraints
• Operating environment (temperature, humidity)
• Brightness requirements for indoor/outdoor use

A well-matched display significantly reduces development time and improves user experience.

13. Frequently Asked Questions

Q1: Why is RGB interface preferred for embedded systems?
Because it provides fast, direct pixel data transfer with minimal latency.

Q2: Is a 3.1 inch TFT LCD suitable for outdoor use?
Yes, if it has sufficient brightness and anti-glare treatment.

Q3: Does RGB interface require a dedicated controller?
Yes, most systems require an LCD controller or MCU with RGB output support.

Q4: What causes flickering in TFT LCDs?
Improper synchronization signals or unstable power supply.

Q5: Can RGB interface be used in battery-powered devices?
Yes, but power optimization is required due to higher data activity.

14. Conclusion and Contact Information

The 3.1 inch TFT LCD RGB interface remains one of the most efficient and widely used display solutions in embedded system design. Its ability to deliver high-speed, high-quality visuals makes it indispensable in industrial, medical, and consumer applications. However, successful implementation requires careful attention to timing, layout, and system integration.

For reliable display modules and professional technical support, SZ Hongjia Technology Shares Limited provides customized TFT LCD solutions tailored to various industrial requirements.

If you are looking for high-quality TFT LCD solutions or technical collaboration, contact us at SZ Hongjia Technology Shares Limited — we are ready to support your next project.
