10.1-inch High-Definition LCD (1920x1080) Drives Display Upgrades in Electronic Devices

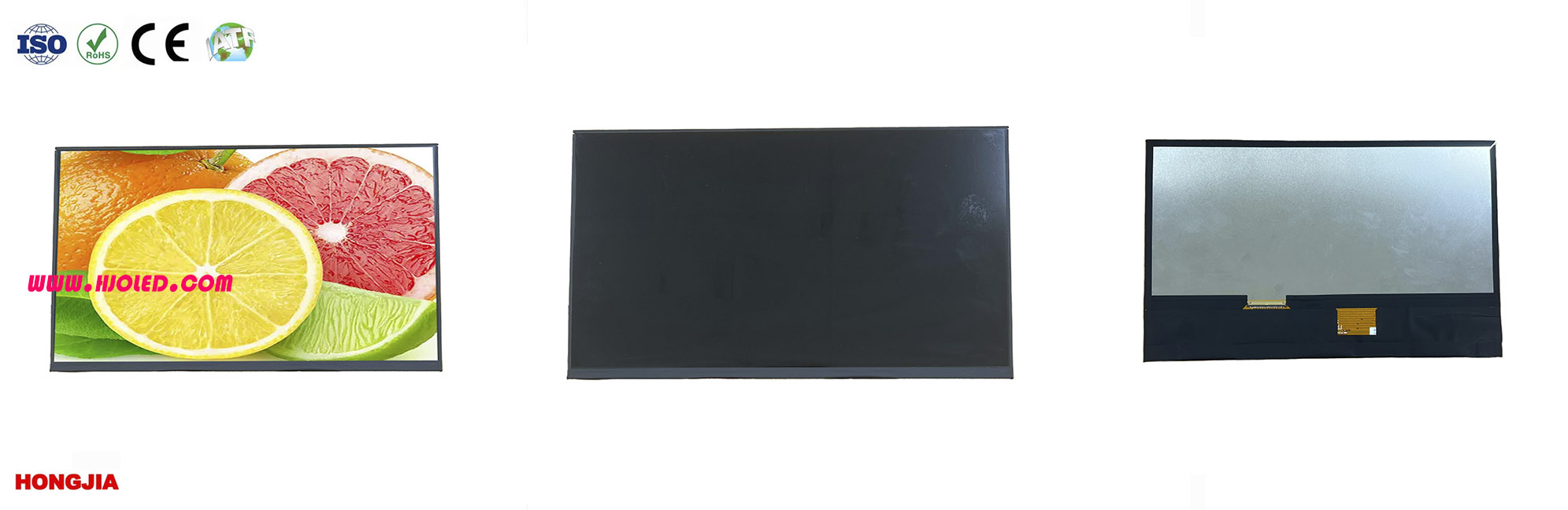

      In the industrial display and consumer electronics markets, 10.1-inch screens typically feature resolutions lower than 1920x1080, making it difficult for customers to find higher-resolution options. Today, Manager Huang—an engineer at Shenzhen Hongjia Technology—introduces a high-definition 10.1-inch LCD (Model HJ1010-01) featuring 1920x1080 resolution, an LVDS interface, a standard 40-pin connector, 16.7 million colors, and brightness levels ranging from 500 to 1000 nits.

With its high PPI (approximately 218), IPS wide viewing angles, and the backing of a mature supply chain, this 10.1-inch 1920x1080 (FHD) LCD is driving display upgrades across industrial, automotive, and medical equipment sectors. Key Information:

1. Core Specifications

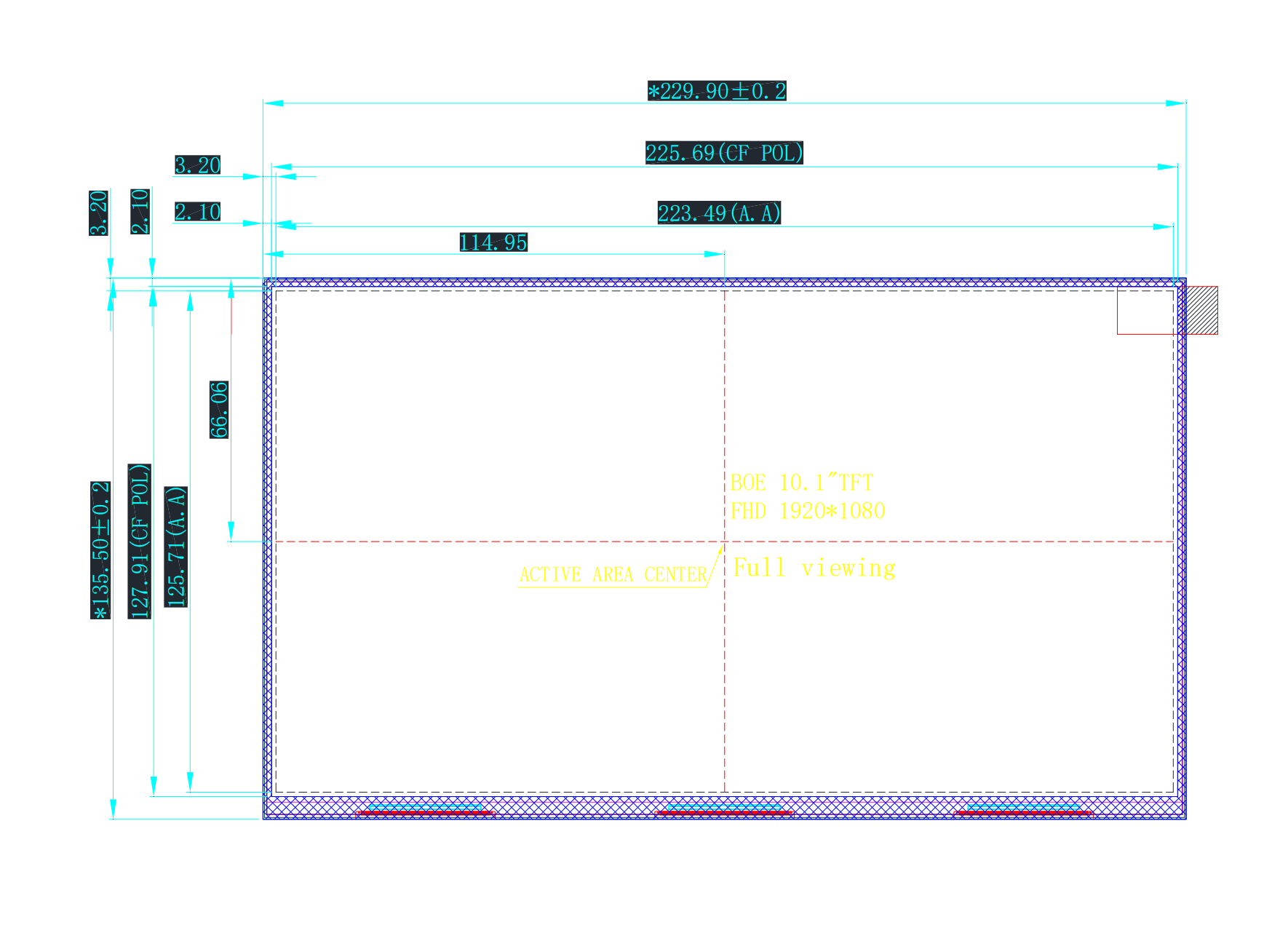

Size/Resolution: 10.1″, 1920×1080 (16:9), PPI ≈ 218; display clarity far exceeds that of 1280×800 screens in the same class.

Panel Type: Mostly IPS panels; 178° wide viewing angle, suitable for collaborative viewing by multiple people.

Brightness: Standard 500–1000 cd/m²; high-brightness industrial/outdoor versions reach 1000–2000 cd/m² (sunlight-readable).

Interface: LVDS (40-pin is common).

Operating Environment: Industrial-grade units typically support operating temperatures of -20 to 70°C (or storage from -30 to 80°C) and offer vibration resistance.

2. Typical Applications Driving Equipment Upgrades

Industrial Control/HMI: CNC operation panels, SCADA monitoring terminals, AGV dispatch screens; upgrading from low-resolution TN screens to FHD IPS results in clearer text.

Automotive Displays: Center console navigation, construction vehicle instrument clusters, rear-seat entertainment; high-brightness versions solve visibility issues in strong light.

Medical Equipment: Portable ultrasound units, patient monitors; FHD combined with high color accuracy facilitates the reading of physiological parameters and medical images.

Security/Smart Terminals: Small surveillance monitors, self-service kiosks, smart home control panels.

Portable External Screens: Mini secondary displays for Raspberry Pi, industrial PCs, or game consoles.

3. Selection Considerations

Verify Interface: Ensure the original device motherboard outputs LVDS and the pin count (e.g., 40-pin) matches.

Brightness Requirements: 500–1000 nits is sufficient for indoor use; ≥700 nits (ideally 1000 nits) is recommended for outdoor or automotive applications.

Touch Technology: Capacitive screens (multi-touch) offer a superior user experience but are more expensive; resistive screens are resistant to contaminants and support glove use.

True 1080P Direct Drive: Some budget screens labeled "1080P compatible" actually use scaled displays; verify native 1920×1080 resolution when purchasing. TFT-LCD Modules

      Shenzhen Hongjia Technology has 12 years of experience in the R&D, production, and sales of LCD and touch screens. We specialize in displays ranging from 0.99 to 12.1 inches and their corresponding touch screens. We offer a wide range of standard products with diverse interface options and also provide customization services; we welcome inquiries from customers.
