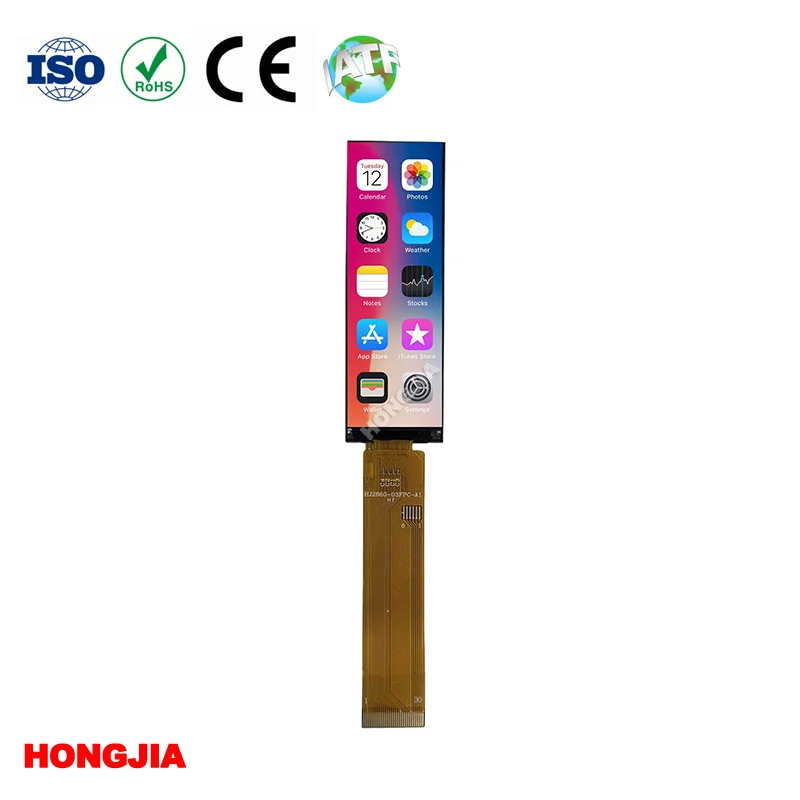

Why Is the 2.86 Inch 220×648 Bar‑type Display the Smart Choice for Compact Interface Designs?

In the world of smart home devices, appliances, and industrial controls, user interfaces are getting smaller, more creative, and more demanding. The need for displays that can convey information in tight spaces without sacrificing readability has driven the popularity of bar‑type screens. The 2.86 Inch 220×648 Bar‑type Display from Hongjia offers a narrow, elongated format with a resolution of 200×648 pixels and IPS full‑viewing angles, making it suitable for status panels, menu interfaces, and scrolling displays. This article examines the product's specifications, interface options, and customization services, and why it has become a practical choice for designers seeking a compact display solution for smart home, appliance, and industrial applications.

When Standard Rectangles Don't Fit the Design？

Many modern products—smart thermostats, coffee machines, audio systems, and control panels—require displays that convey information in a limited footprint. A standard rectangular screen often wastes space or forces compromises in product layout. Bar‑type displays address this challenge by providing a narrow, elongated format that fits neatly into slim product designs while delivering enough resolution to show status indicators, menus, or scrolling text. The 2.86 Inch 220×648 Bar‑type Display from Hongjia is specifically designed for these applications, offering a compact form factor with a resolution that balances content capacity with space efficiency.

The display's 200×648 pixel count, spread across a 2.86-inch diagonal, provides ample space for status bars, numeric readouts, or simple graphical elements without the need for a larger, more expensive panel. The elongated aspect ratio is particularly well‑suited for applications where the display needs to blend into a narrow bezel or where traditional square screens would look out of place. This format has found its way into appliances, home automation controllers, portable instruments, and many other products where space is at a premium but information cannot be compromised.

Technical Specifications

The following table summarizes the key specifications for the 2.86 Inch 220×648 Bar‑type Display from Hongjia.

These specifications highlight the display's suitability for a variety of indoor applications, with a wide temperature range for reliable operation in consumer and industrial environments.

Interface Flexibility and Integration

One of the key advantages of this display is its support for multiple interface protocols. The 2.86 Inch 220×648 Bar‑type Display supports SPI, MCU, and QSPI interfaces, providing designers with flexibility in choosing the communication protocol that best matches their microcontroller capabilities. This eliminates the need for complex interface conversion and reduces overall system cost.

The driver IC, GC9B72, is designed to handle the display's resolution and color depth efficiently. With support for 262K colors, the display can render smooth gradients and detailed graphics, making it suitable for applications beyond simple text or numeric readouts. The 6 backlight LEDs provide a typical luminance of 400 cd/m², ensuring clear visibility in most indoor environments. For applications requiring higher brightness, the backlight can be tuned to meet specific requirements.

The 30‑pin standard connector simplifies integration with existing designs, while the plugging‑type connection offers reliability and ease of assembly. The display's thin profile—just 2.46mm thick—allows it to be incorporated into space‑constrained enclosures without adding unnecessary bulk.

Customization Services

Recognizing that different applications have different requirements, Hongjia offers several customization options for this display. These services are designed to help integrators tailor the display to their specific project needs without requiring a full redesign.

Brightness Adjustment

The backlight brightness can be tuned up or down, from power‑saving indoor levels to higher luminance for well‑lit environments. This is achieved by adjusting the LED configuration or driver current, providing flexibility for different usage scenarios.

FPC Customization

The flexible printed circuit (FPC) can be modified in terms of length, shape, bending direction, or pin assignment to match specific mainboard layouts and connector types. This allows the display to be integrated into designs with non‑standard mechanical constraints.

Touch Panel Integration

Capacitive or resistive touch panels can be added to the display, with options for cover glass thickness, surface treatment (anti‑glare, anti‑reflection, anti‑fingerprint), and shape to suit product design requirements.

Interface Configuration

The display supports SPI, MCU, and QSPI interfaces. The interface can be fixed to a single protocol or configured to support multiple protocols based on the microcontroller's capabilities, without requiring hardware redesign.

Mechanical Modifications

Bezel, frame, or overall module thickness can be customized to better align with the product enclosure and installation space. This helps designers achieve a clean integration without modifying their existing mechanical designs.

All customizations are backed by Hongjia's 12‑year manufacturing experience, ISO‑certified quality control, and a 36‑month after‑sales warranty. The company supports both small‑batch prototypes and mass production with consistent quality.

Applications and Use Cases

The 2.86 Inch 220×648 Bar‑type Display is suitable for a variety of applications:

• Smart home panels – Used in thermostats, lighting controls, and security panels where a narrow display format fits seamlessly into wall‑mount designs.

• Appliance displays – Integrated into coffee machines, ovens, washing machines, and other appliances to show status, settings, and operation information.

• Industrial control interfaces – Used in equipment controls, machine interfaces, and instrumentation where compact, reliable displays are required.

• Communication equipment – Integrated into routers, network switches, and other communication devices for status indication.

• Handheld devices – Suitable for portable instruments and handheld terminals where space efficiency is critical.

• Automotive electronics – Used in simple dashboard indicators and climate control panels.

The display's bar‑type format is particularly advantageous in applications where designers want to create a distinctive visual identity or where a conventional rectangular display would not align with the product's aesthetic.

Quality Assurance and Manufacturing Capabilities

Hongjia operates a 3,000‑square‑meter factory with 10,000‑class and 1,000‑class clean workshops, fully automatic COG and FOG binding equipment, and automated backlight assembly lines. The company holds ISO 9001, ISO 14001, ISO 45001, and ISO 13485 certifications, reflecting its commitment to quality, environmental responsibility, and medical device quality standards.

The production facility is equipped with fully automatic COG bonding machines, FOG bonding machines, dispensing machines, polarizer placement machines, and comprehensive testing equipment including salt spray testers, brightness testers, and temperature/humidity chambers. This equipment ensures consistent quality across production runs and supports both standard and custom orders.

The company's quality assurance process includes incoming material inspection, in‑process quality checks, and final product testing. Each display is tested for electrical performance, optical characteristics, and mechanical integrity before shipment. With a 12‑month quality assurance period and 36‑month after‑sales service, Hongjia provides long‑term support for its products.

Frequently Asked Questions

Q: What is the resolution of this display?

A: The display has a resolution of 200 (RGB) × 648 pixels, providing a narrow, high‑aspect‑ratio format for status bars, menus, and scrolling content.

Q: What interfaces does the display support?

A: The display supports SPI, MCU, and QSPI interfaces, providing flexibility for integration with different microcontrollers.

Q: Is the display suitable for outdoor use?

A: The display is primarily designed for indoor applications. For outdoor or high‑brightness environments, the backlight brightness can be increased through customization.

Q: Can a touch panel be added to this display?

A: Yes, capacitive or resistive touch panels can be integrated with options for cover glass thickness and surface treatment.

Q: What certifications does Hongjia hold?

A: Hongjia holds ISO 9001, ISO 14001, ISO 45001, and ISO 13485 certifications.

Q: What is the warranty period for this product?

A: The product comes with a 12‑month quality assurance period and 36‑month after‑sales support.

Conclusion

The 2.86 Inch 220×648 Bar‑type Display from Hongjia offers a practical, space‑efficient solution for applications requiring a narrow display format. With its IPS technology, multiple interface options, and extensive customization services, it provides designers with the flexibility to integrate a high‑quality display into compact product designs. Backed by a 3,000‑square‑meter factory, ISO certifications, and a 36‑month after‑sales warranty, Hongjia delivers reliable products for smart home, appliance, industrial, and communication applications. For inquiries, technical specifications, or to discuss your custom requirements, the Hongjia team is available to provide detailed product information and professional support.
