5.9 Inch IPS Display 720×1480 MIPI

HONGJIA 5.9 Inch IPS Display 720×1480 MIPI is developed for manufacturers requiring a compact elongated display module with high-definition output and flexible MIPI integration.

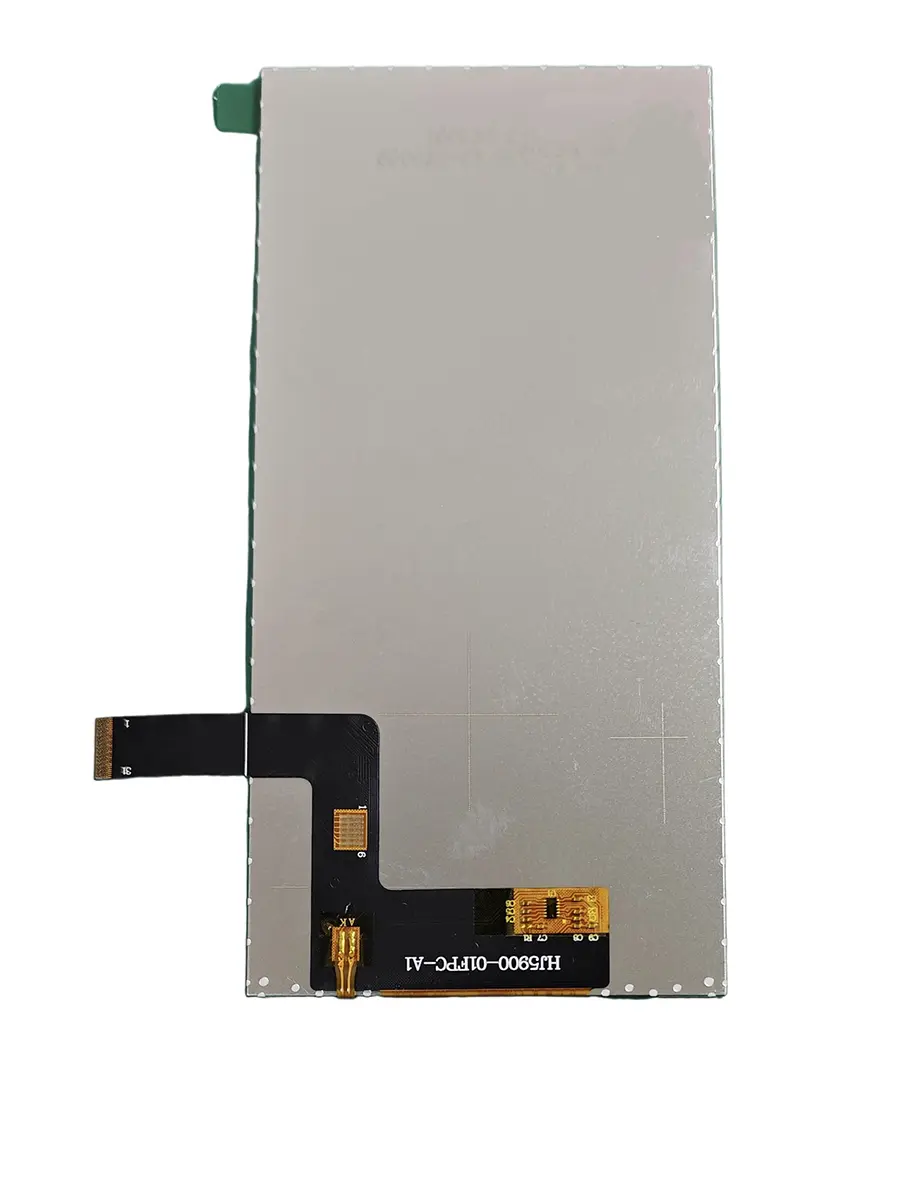

The HJ5900-01FPC-A1 adopts a 5.9-inch IPS TFT LCD with a 18:9 aspect ratio, providing a slim and modern display format for portable electronic devices. With a resolution of 720(RGB)×1480 pixels, the module delivers clear image details while maintaining a compact overall size.

Equipped with the FL7703N driver IC, this display supports 2-lane, 3-lane, and 4-lane MIPI interfaces, allowing engineers to select suitable transmission configurations according to different hardware platforms.

With a brightness of 900 cd/m², adjustable brightness options, and strong visibility under bright environments, this display module is suitable for products requiring clear outdoor readability.

18:9 Long Display Format for Portable Devices

The HONGJIA 5.9 Inch IPS Display 720×1480 MIPI adopts an elongated 18:9 screen ratio, providing a larger vertical display area while maintaining a narrow width.

This design allows manufacturers to create compact devices with more space for information display, menus, control interfaces, and graphical content.

The narrow bezel structure further improves the screen integration effect for modern portable products.

IPS Technology Provides Wide Viewing Performance

The display uses IPS technology with ALL viewing direction capability, maintaining stable colors and image clarity from different angles.

The transmissive normally black display mode and 16M color support provide smooth image transitions and detailed visual presentation for various applications.

Multi-Lane MIPI Interface for Flexible Integration

The module supports 2/3/4 lane MIPI interface configurations, providing flexibility for different system designs.

The MIPI architecture enables efficient signal transmission while helping reduce connection complexity, making it suitable for compact electronic products with limited internal space.

HONGJIA Display Manufacturing Capability

HONGJIA specializes in LCD display module development, manufacturing, and customized display solutions for global electronic product manufacturers.

With more than 12 years of experience, HONGJIA provides display products ranging from 0.99 inches to 12.1 inches, including TFT LCD modules, touch display solutions, and customized display assemblies.

Professional technical support and a 36-month after-sales service period are available to support customers during product development and integration.

High Brightness for Outdoor Readability

The HONGJIA 5.9 Inch IPS Display 720×1480 MIPI provides up to 900 cd/m² brightness with selectable brightness options.

The high luminance performance improves screen readability under strong ambient lighting conditions, making it suitable for outdoor or semi-outdoor applications.

This feature is especially valuable for drone controllers, handheld terminals, and portable devices used in changing environments.

Compact Structure for Handheld Equipment

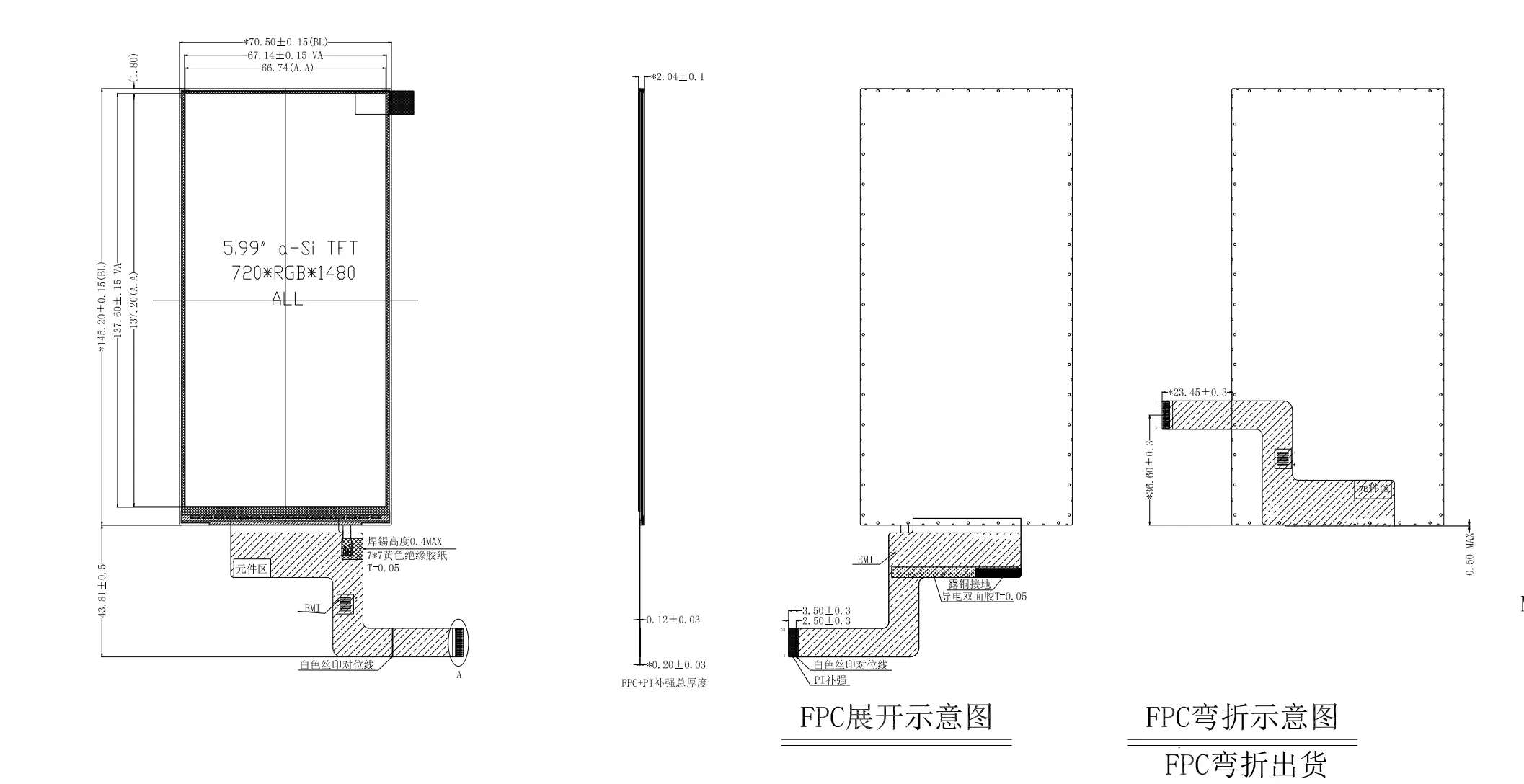

The module features a slim mechanical design:

Active Area: 66.74(W)×137.2(H) mm Outline Size: 70.5(W)×145.2(H)×2.04(T) mm

The compact structure helps manufacturers integrate the display into portable devices while maintaining sufficient visual area.

Designed for Smart and Industrial Applications

The HONGJIA 5.9 Inch IPS Display 720×1480 MIPI can be applied in:

• Drone Remote Controllers

• Smart Home Devices

• Handheld Equipment

• POS Terminals

• Medical Equipment

• Portable Control Systems

Its combination of high-definition resolution, MIPI interface, narrow design, and high brightness makes it suitable for interactive electronic products requiring reliable display performance.

Technical Specifications

TFT LCD Module Specifications

Frequently Asked Questions

What is the advantage of the 18:9 display format? The 18:9 format provides a taller display area within a narrow body design, making it suitable for portable devices where space efficiency and information display area are both important.

What interface does this 5.9-inch display support? The HONGJIA 5.9 Inch IPS Display supports 2-lane, 3-lane, and 4-lane MIPI interfaces, allowing flexible integration with different hardware platforms.

Is this display suitable for outdoor applications? Yes. The module supports up to 900 cd/m² brightness, improving visibility under strong ambient light conditions and making it suitable for outdoor or bright environments.

What resolution does this display provide? This display module provides 720(RGB)×1480 pixel resolution, delivering HD image quality with detailed visual output.

Which driver IC is used in this display module? The module uses the FL7703N driver IC, providing stable display control and reliable operation.

What products can use this 5.9-inch MIPI display? This display is suitable for drone controllers, smart home products, handheld devices, POS terminals, medical equipment, and other portable electronic applications.
