5.9 Inch IPS Display with Touch 720×1480 MIPI

HONGJIA 5.9 Inch IPS Display with Touch 720×1480 MIPI is developed for manufacturers requiring a complete display solution that integrates high-definition visual output and touch interaction.

The HJ5900-01FPC-A1 adopts a 5.9-inch IPS TFT display with an 18:9 elongated format, providing a larger vertical viewing area while maintaining a compact product structure. With a resolution of 720(RGB)×1480 pixels, the module delivers detailed images for graphical interfaces, control panels, and multimedia applications.

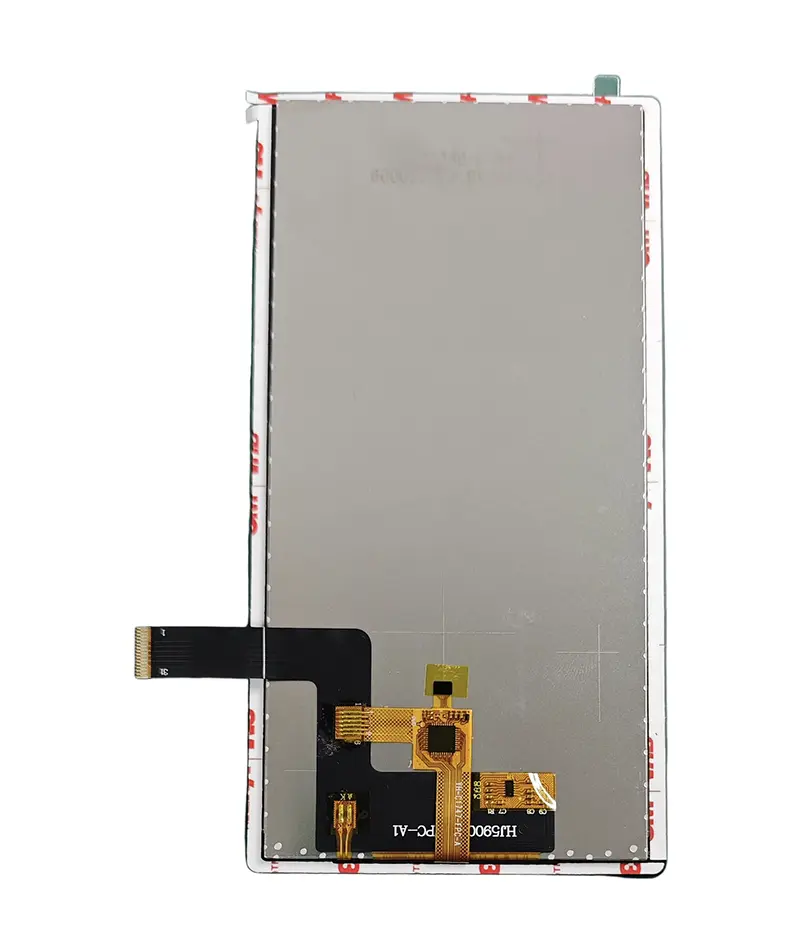

Unlike separate LCD and touch panel assemblies, this touch display integrates the capacitive touch interface into the display FPC design. The combined structure helps reduce internal wiring requirements and saves motherboard space during product development.

Equipped with the FL7703N driver IC, the module supports 2-lane, 3-lane, and 4-lane MIPI interfaces. The integrated projected capacitive touch screen uses the CST3530 touch driver IC, supporting multi-touch operation through IIC communication.

Integrated Touch Display Design for Simplified Product Development

The HONGJIA 5.9 Inch IPS Display with Touch 720×1480 MIPI combines LCD display and touch control into one module.

The touch interface is integrated into the display flexible cable, reducing additional connection requirements and helping manufacturers optimize internal product layouts.

This integrated structure is suitable for compact electronic products where installation space and assembly efficiency are important considerations.

18:9 Long Display Format for Portable Applications

The module adopts an 18:9 display ratio, providing a narrow and elongated screen design.

This format offers advantages for portable devices by providing more vertical display space for:

• Control interfaces

• Menus

• Data visualization

• Touch operations

The narrow bezel structure also helps improve the overall appearance of modern electronic products.

Technical Specifications

Capacitive Touch Screen Specifications

TFT LCD Module Specifications

IPS Panel Provides Wide Viewing Performance

The display uses IPS technology with ALL viewing direction capability, maintaining consistent image quality and color performance from different angles.

The 720×1480 resolution provides HD image output, while the 16M color display capability enables smooth image transitions and detailed visual presentation.

Multi-Lane MIPI Interface with Flexible Integration

The module supports:

• 2-lane MIPI

• 3-lane MIPI

• 4-lane MIPI

This flexible MIPI configuration allows engineers to select suitable transmission solutions according to different hardware architectures.

The 31-pin standard plugging connection helps simplify integration into embedded systems.

Capacitive Multi-Touch Function with Durable Surface

The integrated touch panel adopts projective capacitive touch technology.

Touch specifications include:

• Multi-touch support

• IIC communication

• CST3530 touch driver IC

• Glass cover material

• ≥87% transparency

• ≥7H hardness

The durable touch surface helps maintain reliable operation during frequent user interaction.

High Brightness for Outdoor Readability

The HONGJIA 5.9 Inch IPS Display with Touch 720×1480 MIPI provides 900 cd/m² brightness, with selectable brightness options.

The high luminance performance improves visibility under strong ambient lighting conditions, making it suitable for outdoor and semi-outdoor applications such as drone controllers and portable devices.

Designed for Smart Devices and Professional Equipment

This integrated touch display module is suitable for:

• Drone Remote Controllers

• Smart Home Equipment

• Handheld Devices

• POS Terminals

• Medical Equipment

• Industrial Control Devices

• Portable Electronic Products

Its combination of high-definition display, touch integration, MIPI interface, and slim structure provides manufacturers with a practical solution for interactive devices.

HONGJIA Display Manufacturing Capability

HONGJIA specializes in LCD display module development, manufacturing, and customized display solutions.

With more than 12 years of experience, HONGJIA provides display products ranging from 0.99 inches to 12.1 inches, including standard TFT LCD modules, integrated touch displays, and customized display assemblies.

Professional technical support and a 36-month after-sales service period are available to support customers during product development and integration.

Frequently Asked Questions

What is the difference between this touch display and a standard 5.9-inch LCD module? This model integrates a projected capacitive touch screen with the LCD module, allowing both display output and touch control in one assembly. It helps simplify product structure and reduce internal space requirements.

Does this 5.9-inch display support multi-touch operation? Yes. The integrated capacitive touch panel supports multi-touch functionality and uses the CST3530 touch driver IC with IIC communication.

What MIPI interface configurations are supported? The module supports 2-lane, 3-lane, and 4-lane MIPI interfaces, providing flexibility for different hardware designs.

Is this display suitable for outdoor products? Yes. With brightness up to 900 cd/m², the display provides improved visibility under strong ambient lighting conditions and is suitable for outdoor or semi-outdoor devices.

What applications can use this integrated touch display? The module is suitable for drone controllers, smart home products, handheld devices, POS systems, medical equipment, and other interactive electronic products.
