6.9 inch IPS LCD Screen Incell with Touch
  • 6.9 inch IPS LCD Screen Incell with Touch 6.9 inch IPS LCD Screen Incell with Touch

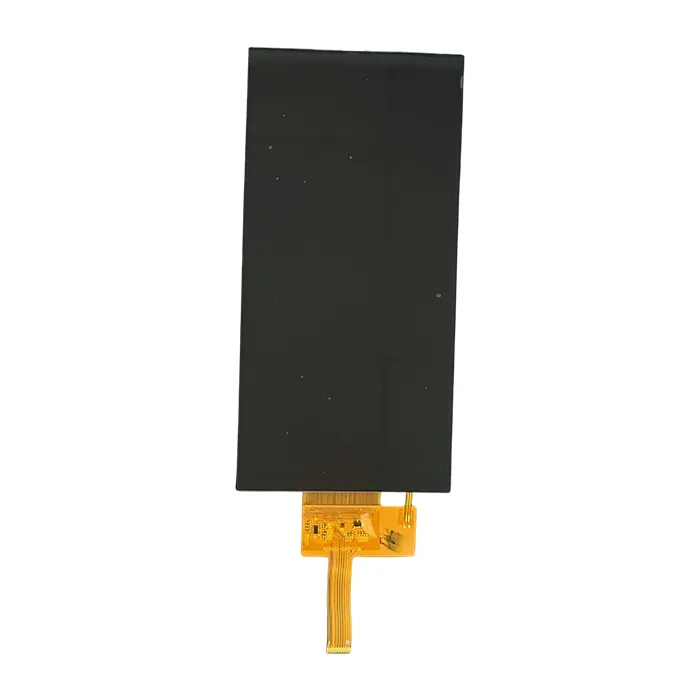

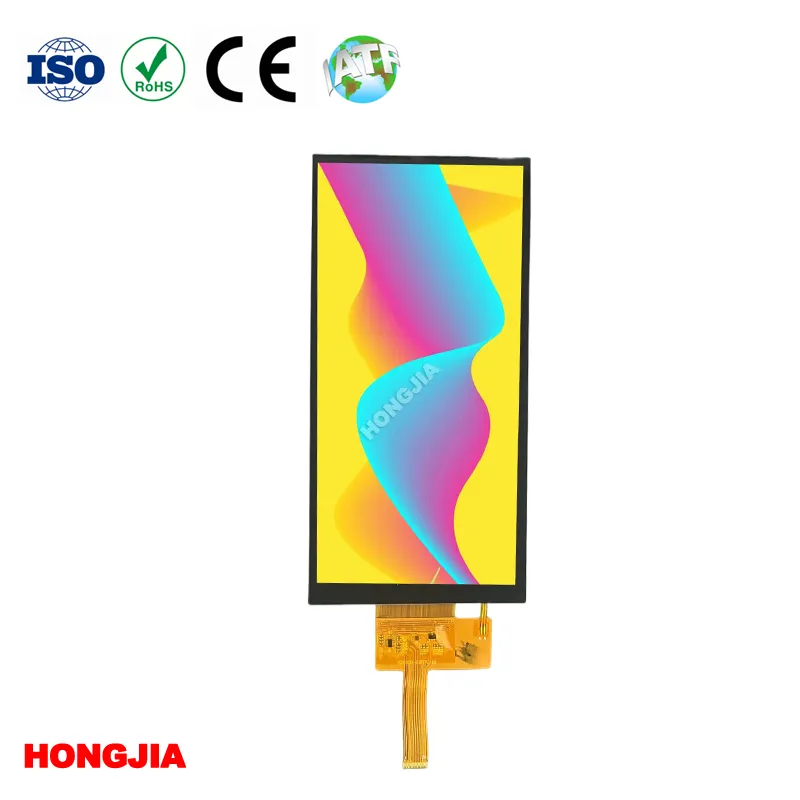

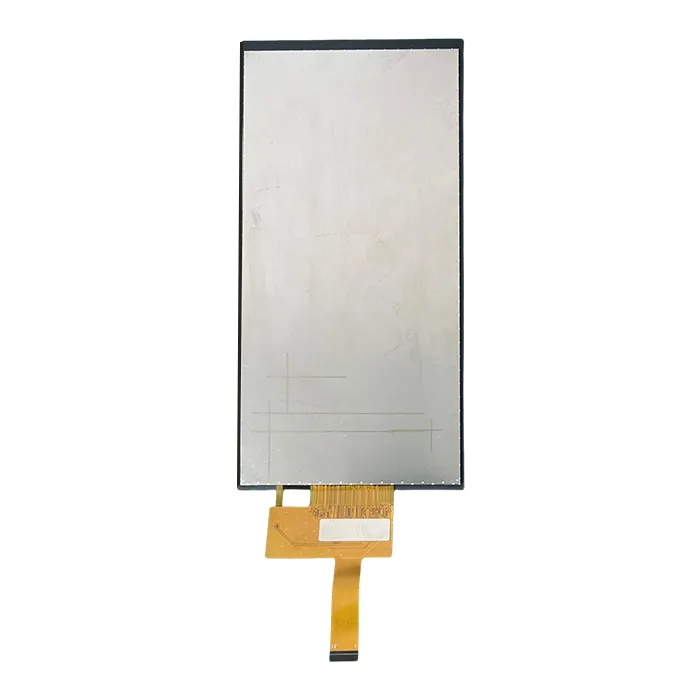

6.9 inch IPS LCD Screen Incell with Touch

The model HJ6900-01 6.9 inch IPS LCD Screen Incell with Touch is an in-cell LCD that supports 2/3/4-lane MIPI interfaces, features an integrated multi-touch touchscreen, and offers a resolution of 720×1440 with a contrast ratio of 1200:1. It comes with a standard 31-pin connector. This 6.9-inch display uses in-cell technology with a built-in multi-touch capacitive touch panel. It integrates only one driver IC, reducing debugging time, and the overall module thickness is slim, helping to reduce device thickness. It is widely used in various electronic devices, including dual-86 boxes, thermostats, consumer electronics, medical equipment, industrial devices, and more.

  • size:

    6.9 inch

  • Number of Pixels:

    720*1440

  • Viewing direction:

    ALL O’CLOCK/ IPS

  • LCM Driver IC:

    ST7121P
Model:HJ6900-01

Send Inquiry

Product Description

This 6.9 inch IPS LCD Screen Incell with Touch by HONGJIA adopts the mature ST7121P driver IC, which is reliable, stable, and supports long-term continuous supply. Shenzhen HONGJIA Technology has 12 years of industry experience, specializing in the R&D, production, and sales of displays and matching touch panels ranging from 0.99 inches to 12.1 inches. We offer a wide range of standard products and also accept custom orders.

6.9 inch IPS LCD Screen Incell with Touch6.9 inch IPS LCD Screen Incell with Touch

Capacitive Touch Display Specification

Part No HJ6900-01 Touch mode Projective capacitive touch screen
Outline size 84(W）*170（H）*3.5（T） Touch Interface IIC
Active Area 78.2（W）*156.04（H） Touch Driver IC ST7121P
Transparency ≥87% Hardness ≥7H
Structure incell Cover material Glass
Number of pin 6PIN Touch point multi-touch

TFT LCD MODULE Specification

Part No HJ6900-01FPC-A1 Interface type MIPI
Size 6.9 inch Display Mode Transmissive/ Normally Black
Number of Pixels 720(RGB)*1440 Number of pin 31
Viewing direction ALL O’CLOCK Connecting type plugging type
Active Area 78.2（W）*156.04（H） Luminance 600cd/㎡ /Brightness is selectable

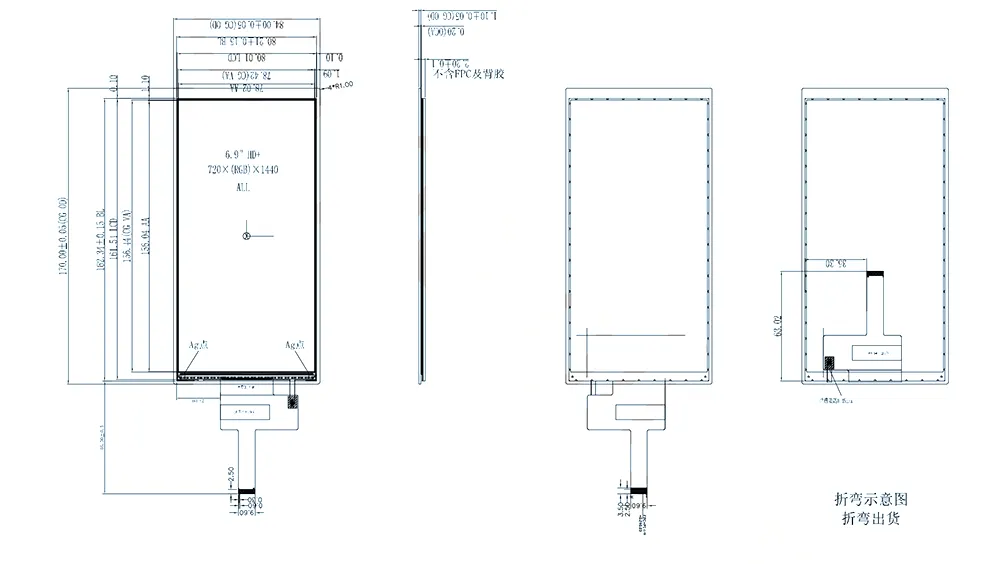

Dimensional Outline 80.21（W）*162.34（H）*2.2（T） Backlight leds 20 pcs
LCM Driver IC ST7121P Backlight type white LED backlight
Contrast Ratio 1200 operating temperature -20----70°C
Display Colors 16.7M Storage Temperature -30----80°C

6.9 inch IPS LCD Screen Incell with Touch



Product Note:

This 6.9 inch IPS LCD Screen Incell with Touch is our standard offerings. The images, parameters, and other information shown on the website are for customer reference only. Please refer to our official product datasheet for accurate specifications. For the datasheet of this product or other custom requirements, please contact our sales department: Mr. Weng, Email: wlc.sales@hjoled.com. We will provide detailed quotations and technical support.

Our mission is to help customers reduce equipment maintenance risks, enhance overall product competitiveness, and increase market share. We also offer free professional consultation, the latest product catalogs, and highly competitive pricing.


Application

HONGJIA LCD products are now widely applied in industrial instrumentation, medical equipment, smart home, communication equipment, household appliances, consumer electronics, mobile payment POS machines, handheld PDA equipment, automotive electronic instruments and other fields.
