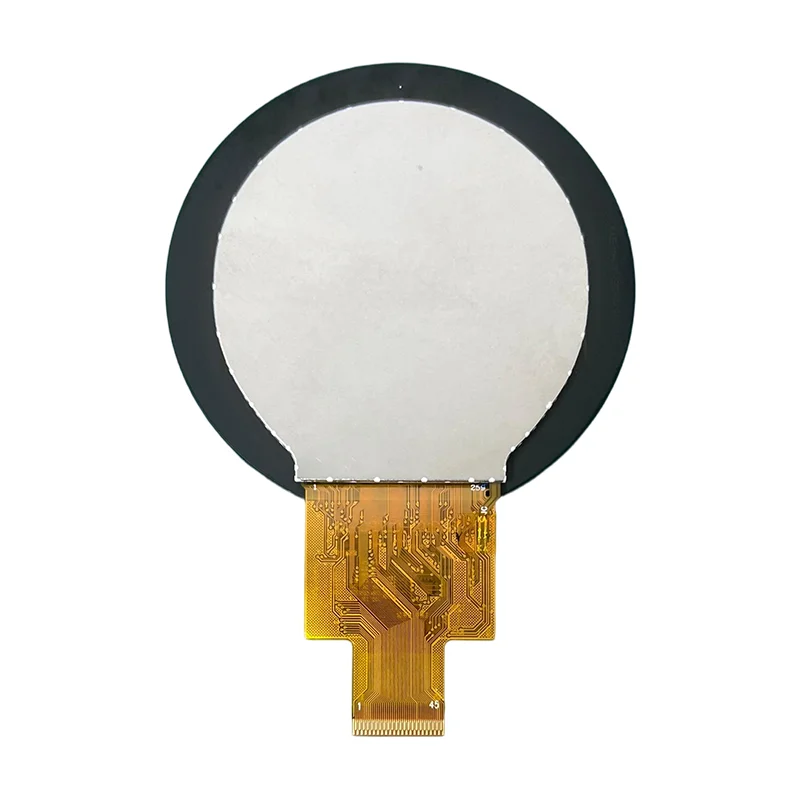

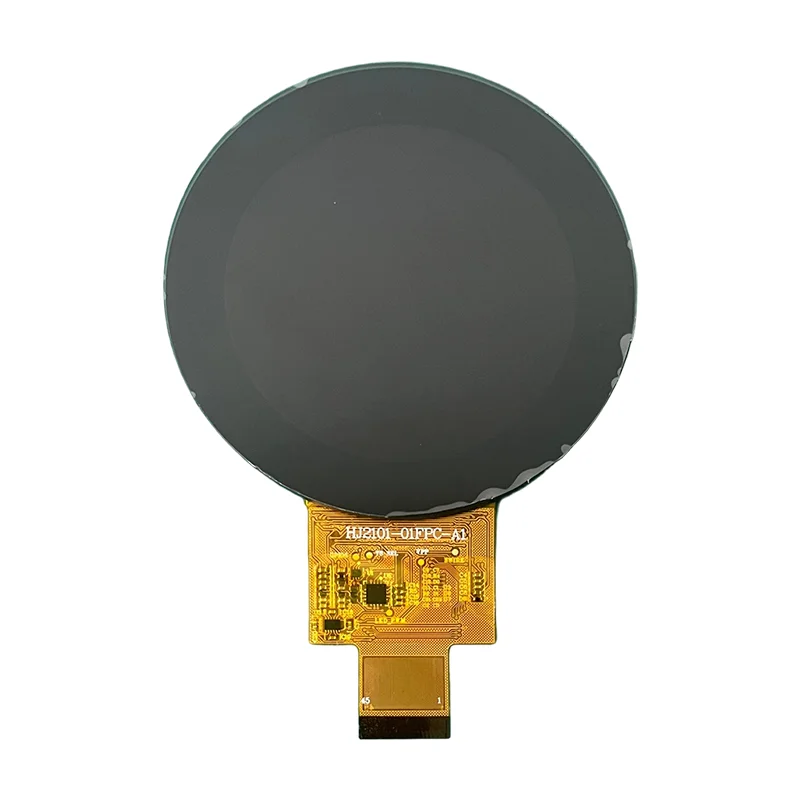

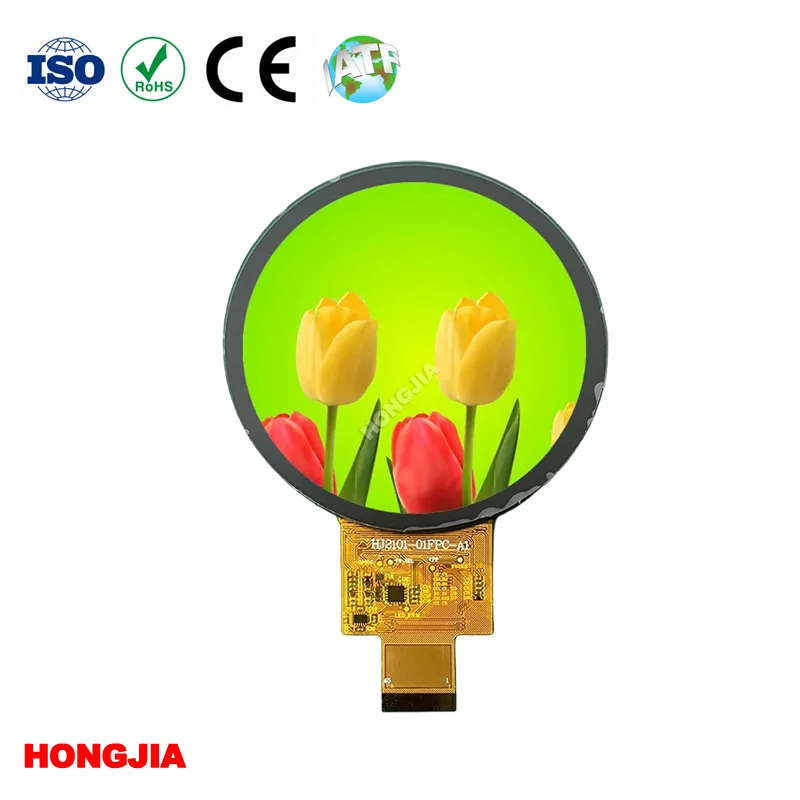

2.1 inch round LCD Screen with 540*540 incell

Hongjia from China now introduced this 2.1 inch round LCD Screen with 540*540 incell that stands out in the market while many 2.1‑inch round displays are available, few offer this high resolution. This model supports multiple interfaces including QSPI, SPI, MCU, and RGB, making it compatible with low‑cost microcontrollers to help reduce overall system cost. Mass‑produced by Hongjia with the model number HJ2101-01, it uses the mature AXS15361 driver IC.

size:
size
Number of Pixels:
540*540
Viewing direction:
ALL O’CLOCK/ IPS
LCM Driver IC:
AXS15361
Touch:
QSPI/SPI/MCU/RGB

Send Inquiry

Product Description

Hongjia offers the 2.1 inch round LCD Screen with 540*540 incell as a cost‑effective, slim module that features a 45‑pin standard connector and integrated touch functionality. Its in‑cell process reduces module thickness while maintaining good touch sensitivity. This display is suitable for a variety of compact devices that require a circular screen with sharp visuals. Hongjia also accepts custom orders and backs this product with 36‑month after‑sales service, ensuring reliable long‑term support for your project.

2.1 inch round LCD Screen with 540x540 incell

Capacitive Touch Display Specifications

Part No	HJ2101-01	Touch mode	Projective capacitive touch screen
Outline size	71.3（W）71.3（H）3.5（T）	Touch Interface	IIC
Active Area	53.136（W）*53.136（H）	Touch Driver IC	AXS15361
Transparency	≥87%	Hardness	≥7H
Structure	incell	Cover material	Glass

TFT LCD MODULE Specifications

Part No	HJ2101-01FPC-A1	Interface type	SPI/MCU/QSPI/RGB
Size	2.1 inch	Display Mode	Transmissive/ Normally Black
Number of Pixels	540(RGB)*540	Number of pin	45
Viewing direction	ALL O’CLOCK	Connecting type	plugging type
Active Area	53.136（W）*53.136（H）	Luminance	500cd/㎡ /Brightness is selectable

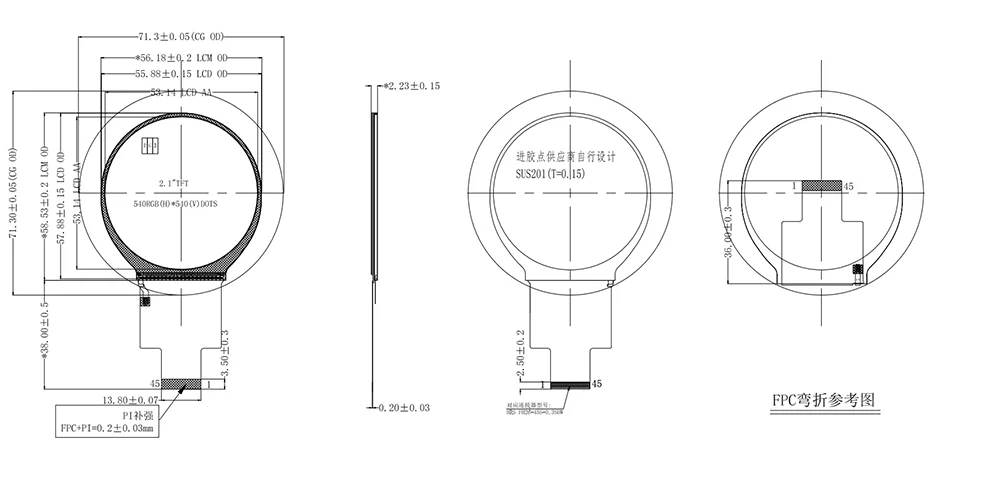

Dimensional Outline	56.18（W）58.53（H）2.23（T）	Backlight leds	6 pcs
LCM Driver IC	AXS15361	Backlight type	white LED backlight
Contrast Ratio	1000	operating temperature	-20----70°C
Display Colors	16.7M	Storage Temperature	-40----90°C

Notes: The above 2.1 inch round LCD Screen with 540*540 incell is our standard items. The pictures, parameters, etc. listed on the website are for reference only. The specific information should be based on our product specification documents. Our product models are diverse and the interfaces are complete. If you need the specification documents or other customized services, please contact our business department. We will be more than happy to serve you.

What is In-Cell?

In-Cell is the core technology of this type of screen, which means embedding the touch sensing layer directly into the interior of the liquid crystal panel.

Compared with traditional screens, it has the following main advantages:

Ultra-thin design: Without the need for an independent touch panel, the total thickness of the module can be controlled at around 3.16mm.

Optical performance is superior: It reduces light refraction, has a higher light transmittance, makes the picture more transparent, and eliminates parallax.

More sensitive touch: The touch response is quick and precise, and it supports smooth multi-touch functionality.

More reliable structure: Integrated design, internal components are less likely to loosen or get dusty. It is more stable in environments with strong vibrations and significant temperature differences.

Product Features

1. High‑Resolution Circular Display – a Cut Above the Rest

Hongjia's 2.1 inch round LCD Screen with 540*540 incell delivers a pixel density far exceeding common 320×320 or 400×400 round panels. Text appears crisp and icons are razor‑sharp, making it ideal for smartwatches, wearables, handheld devices, and other products that demand fine visual detail.

2. Multiple Interface Options for Cost‑Effective MCU Integration

This 2.1 inch round LCD Screen supports QSPI, SPI, MCU, and RGB interfaces, allowing direct connection to low‑cost microcontrollers without requiring expensive main processors. This flexibility significantly reduces overall system cost for budget‑sensitive designs.

3. In‑Cell Touch Integration for Ultra‑Slim, High‑Sensitivity Performance

Hongjia's 2.1 inch round LCD Screen with 540x540 incell incorporates the touch sensor directly into the LCD cell – a true in‑cell architecture. This eliminates an extra touch layer, reducing module thickness while maintaining excellent touch responsiveness, and simplifies the overall stack‑up for compact portable devices.

4. Standard 45‑Pin Connector with a Mature Driver IC

Equipped with a 45‑pin standard connector and powered by the proven AXS15361 driver IC, this display offers straightforward hardware connection and a stable, well‑established software driver. This speeds up development and shortens time‑to‑market.

5. Exceptional Value with Customization and Long‑Term Warranty

Mass‑produced by Hongjia, the HJ2101-01 combines premium performance with competitive pricing. We accept custom orders for brightness, FPC, touch panel, and other specifications, and back every unit with a 36‑month after‑sales service ensuring reliable long‑term support for your project.
