2.2 Inch IPS Display with Touch 480×800 MIPI

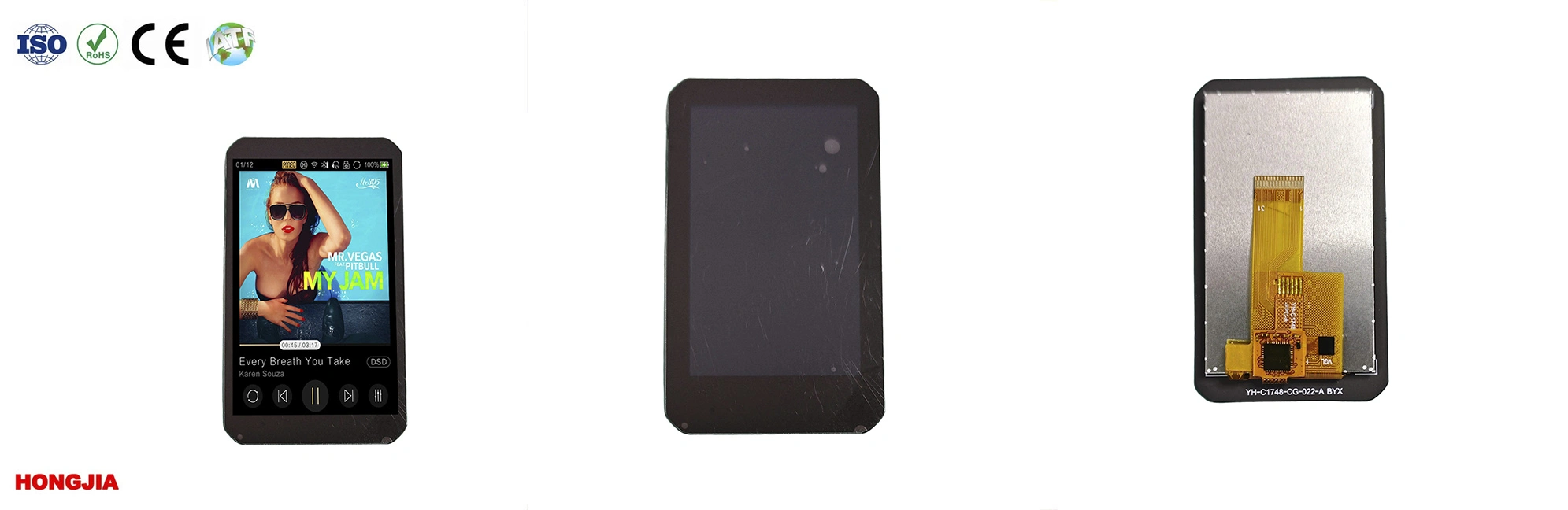

HONGJIA 2.2 Inch IPS Display with Touch 480×800 MIPI integrates the display and touch functions into a single module, providing a ready‑to‑install solution for compact electronic products. The HJ2201‑01FPC‑A1 adopts a 2.2‑inch IPS TFT panel with 480(RGB)×800 resolution and a projected capacitive touch structure.

Unlike separate LCD and touch assemblies, this module combines the display screen and touch panel through one flexible cable, helping designers reduce internal wiring complexity and improve assembly efficiency. With full viewing angle performance, MIPI display communication, I2C touch control, and multi‑touch capability, it is suitable for interactive devices requiring both visual output and touch input.

One Module Integrating Display Output and Touch Input

For products requiring both a screen and touch operation, integrating two separate components can increase design complexity. The HONGJIA 2.2 Inch IPS Display with Touch 480×800 MIPI combines the TFT LCD module and capacitive touch panel into one integrated structure.

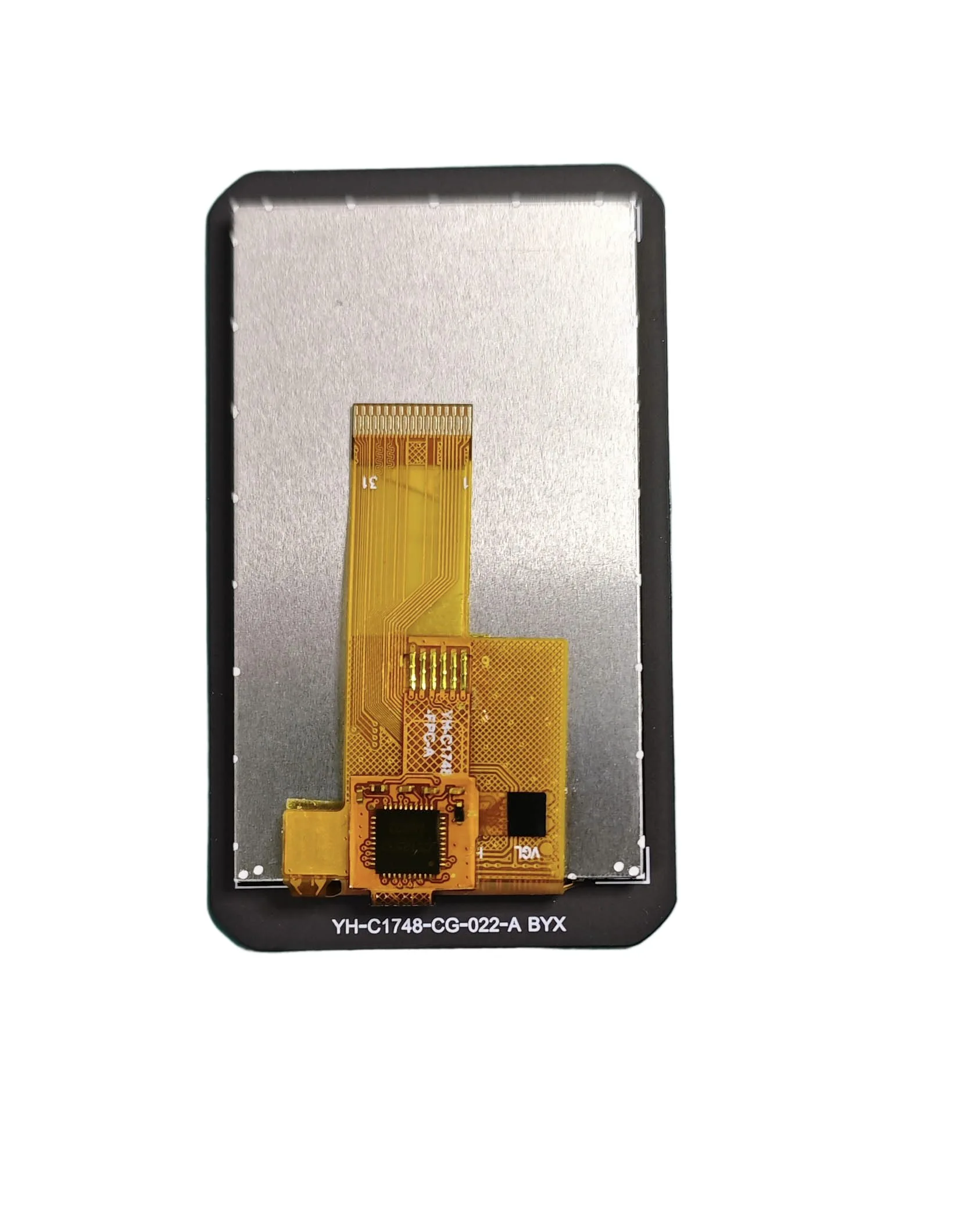

The display and touch circuits are connected through a shared flexible cable, allowing product developers to simplify mechanical design, reduce connection points, and shorten the integration process.

Designed for Interactive Electronic Products

This module is built for devices where users need direct screen interaction rather than simple information display.

The projected capacitive touch panel supports multi‑touch operation, providing smooth control for menu navigation, parameter adjustment, and interactive functions in compact electronic products.

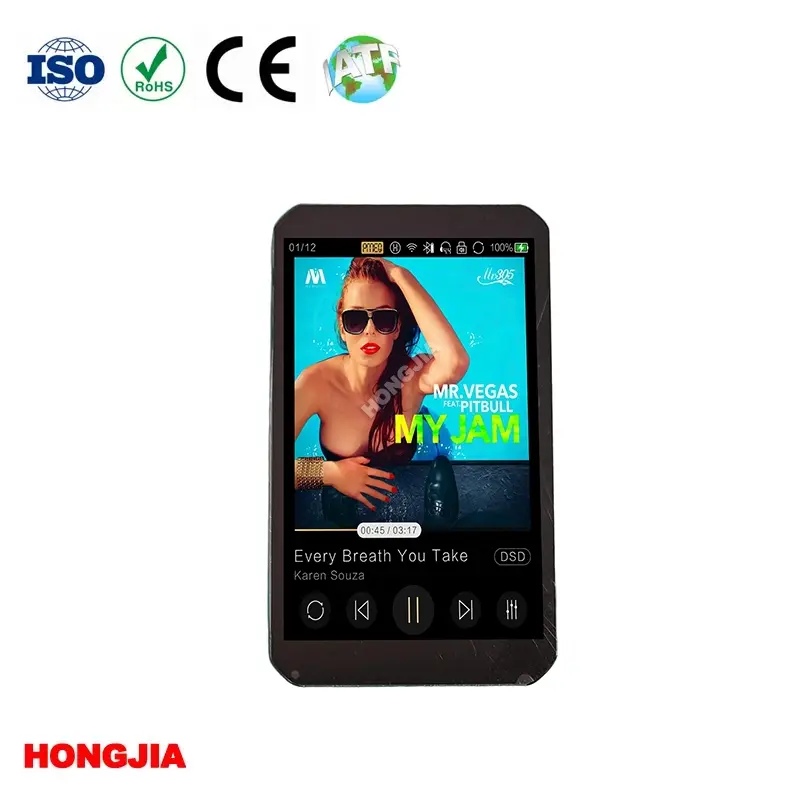

IPS Display Brings Detailed Images in a Small Format

Although designed in a 2.2‑inch size, the module delivers a high resolution of 480(RGB)×800 pixels, providing finer image details compared with common 240×320 display solutions.

The IPS panel supports ALL viewing directions, maintaining consistent brightness and color performance when viewed from different angles.

Technical Specifications

Capacitive Touch Screen Specifications

TFT LCD Module Specifications

Separate Communication Channels for Flexible Hardware Design

The LCD section uses the MIPI interface for display data transmission, while the touch panel communicates through the I2C interface.

This design allows engineers to manage display output and touch input independently, providing more flexibility when matching different main control platforms.

Touch Panel Built for Long‑Term Operation

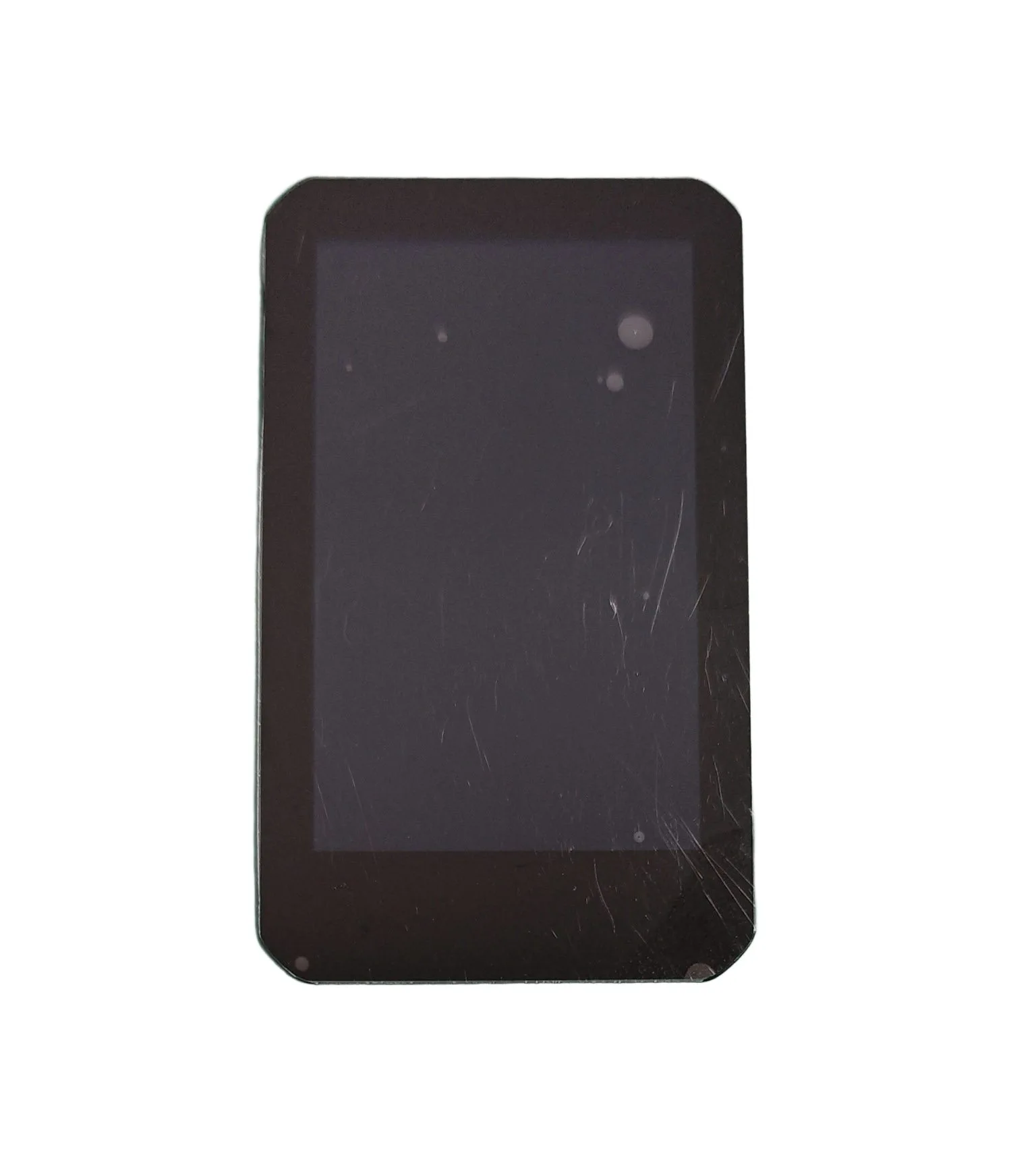

The capacitive touch layer uses a glass cover structure with ≥7H hardness and ≥87% transparency.

The durable surface improves resistance to daily operation while maintaining clear light transmission, making the module suitable for frequently operated handheld and portable devices.

Compact Dimensions for Space‑Limited Product Design

The integrated touch display structure keeps the module compact while providing both display and input functions.

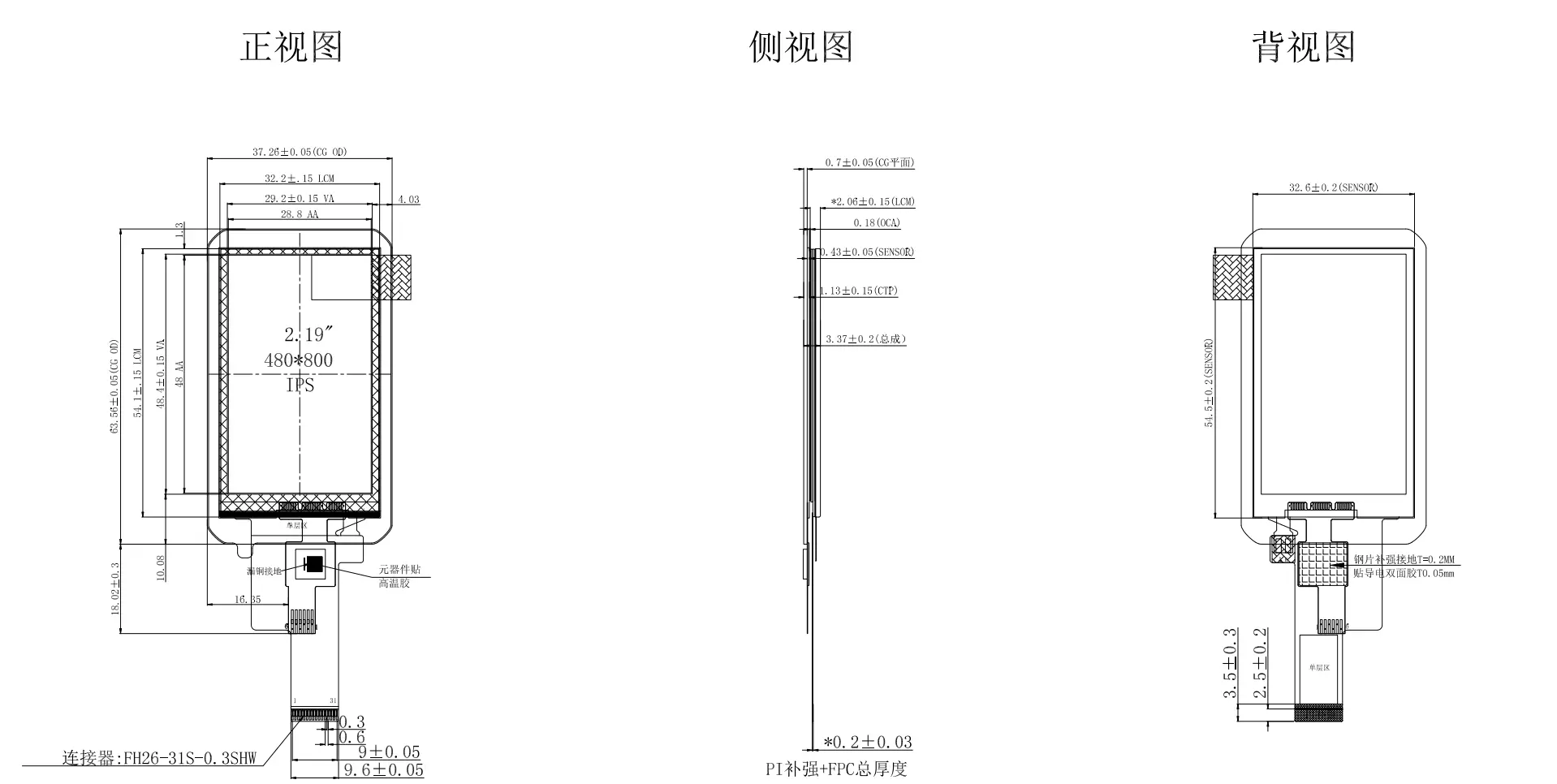

The TFT LCD active area is 28.8(W)×48(H) mm, and the touch module outline size is 37.26(H)×63.56(W)×3.37(T) mm, making it suitable for products where installation space is limited.

Suitable for Portable and Embedded Device Development

The HONGJIA 2.2 Inch IPS Display with Touch 480×800 MIPI can be integrated into various electronic products, including:

• Action Cameras

• Portable Game Consoles

• Automotive Smart Keys

• Remote Controllers

• Smart Wearable Devices

• Embedded Control Panels

The combination of high‑resolution display and multi‑touch capability helps manufacturers develop compact devices with improved user interaction.

HONGJIA Display Manufacturing Experience

HONGJIA focuses on LCD display modules and touch screen solutions, covering product development, manufacturing, and technical support.

With more than 12 years of experience, HONGJIA supplies display solutions from 0.99‑inch to 12.1‑inch, including standard modules and customized display assemblies. Professional technical assistance and 36‑month after‑sales service support are provided for global customers.

Frequently Asked Questions

1. What is the difference between the HONGJIA 2.2 Inch IPS Display with Touch and a standard LCD display? The standard LCD module only provides image display, while this model integrates a projected capacitive touch panel with the IPS display. The combined structure allows both visual output and touch control within one compact module.

2. How is the touch panel connected to the display module? The display and touch functions are integrated through a combined flexible cable design. The LCD uses the MIPI interface, while the touch panel communicates through the I2C interface, helping simplify hardware integration.

3. Does this 2.2‑inch touch display support multi‑touch operation? Yes. The capacitive touch panel uses projected capacitive touch technology and supports multi‑touch functions, providing smooth and accurate interaction for electronic devices.

4. Which touch controller IC is used in this module? The touch panel uses the CST3530 touch driver IC, supporting stable touch signal processing through the I2C communication interface.

5. What type of applications can use this integrated touch display module? The module is suitable for compact electronic products requiring both display and touch functions, including action cameras, portable game consoles, automotive smart keys, remote controllers, wearable devices, and embedded control systems.

6. Can HONGJIA provide customized LCD and touch display solutions? Yes. HONGJIA provides LCD modules and integrated touch display solutions with different sizes, interfaces, and configurations. Technical support and customization services are available according to customer product requirements.
