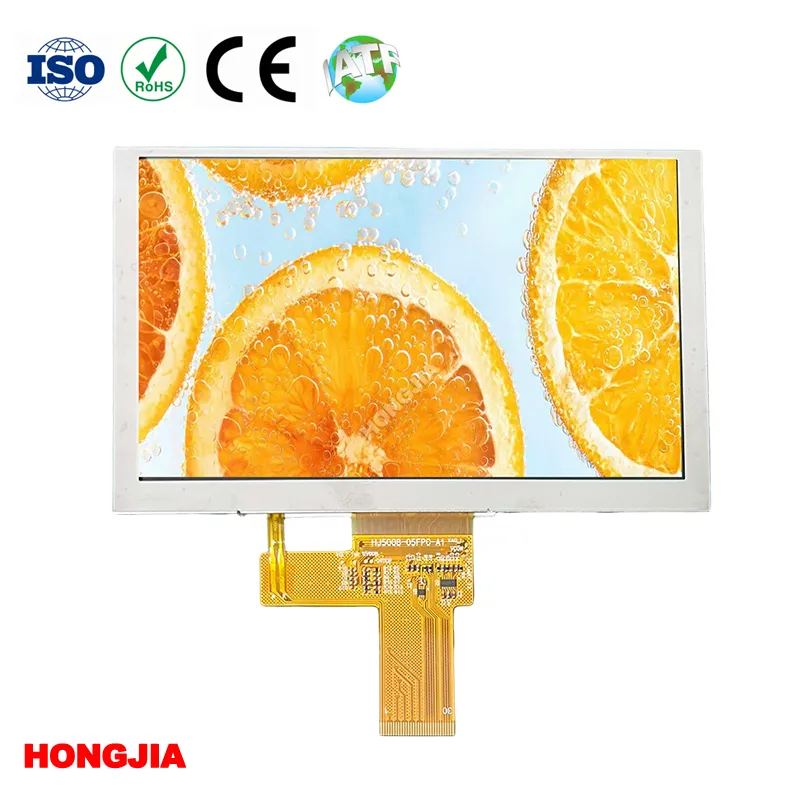

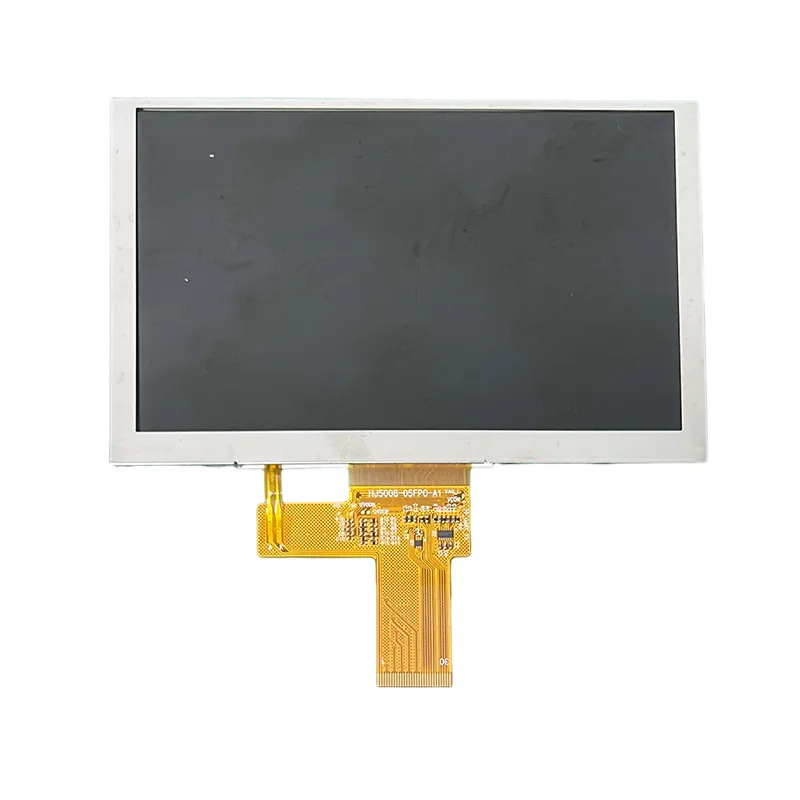

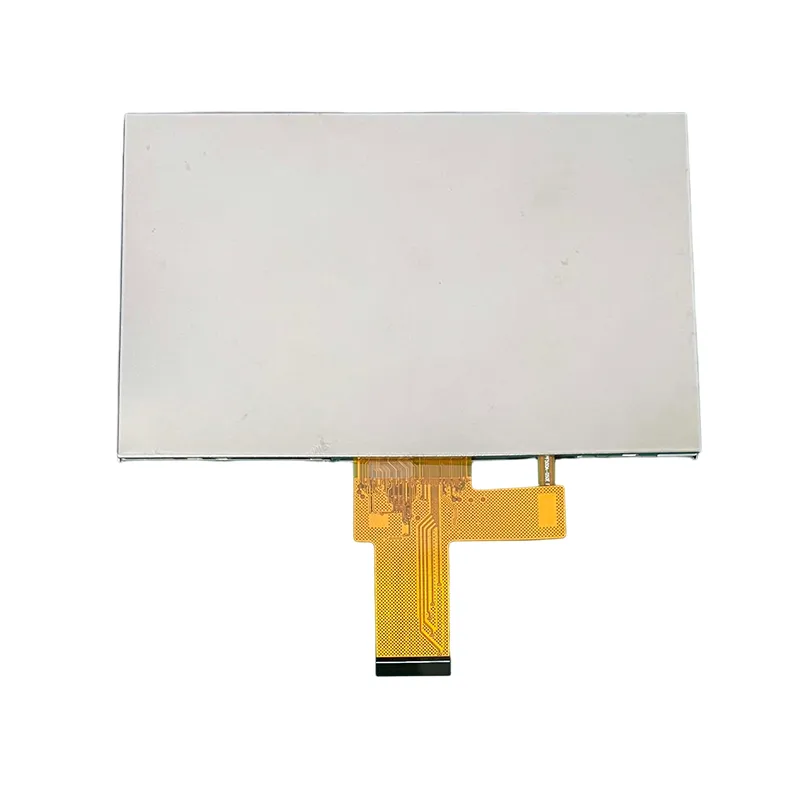

5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI
  • 5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI 5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI

5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI

The HJ5008-06 5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI is a 5-inch landscape TFT LCD with IPS full-view technology and a resolution of 1024×600, which delivers a significant upgrade in display quality compared to the traditional 800×480 resolution. It supports the MIPI interface and features in‑cell touch functionality. The module is ultra‑thin, uses a single driver IC for easier debugging, offers 16M colors, and has a contrast ratio of 1200:1. The panel brightness can reach 600 to 1000 nits, making it an ideal choice for your device display.

  • size:

    5.0 inch

  • Number of Pixels:

    1024*600

  • Viewing direction:

    ALL O’CLOCK/ IPS

  • LCM Driver IC:

    ST72325
Model:HJ5008-06

Send Inquiry

Product Description

This 5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI is equipped with a 5-inch high‑definition screen. This 5-inch high‑definition landscape screen also supports a wide operating temperature range of -30°C to 85°C and has been widely adopted in various electronic devices, including smart home products, consumer electronics, medical equipment, industrial devices, and more. Shenzhen HONGJIA Technology has 12 years of industry experience, serves many Fortune 500 companies worldwide, and owns its own factory with four fully automated production lines. The fully automated manufacturing process ensures reliable and stable quality. We welcome customers to contact us via email for inquiries.

5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI

Capacitive Touch Display

Part No HJ5008-05 Touch mode Projective capacitive touch screen
Outline size 120.7（W）*75.8（H）*3.8（T） Touch Interface IIC
Active Area 107.83（W）*64.7（H） Touch Driver IC ST72325
Transparency ≥87% Hardness ≥7H
Structure incell Cover material Glass
Number of pin 6PIN Touch point multi-touch


Detailed Information of TFT LCD MODULE

Part No HJ5008-06FPC-A1 Interface type MIPI
Size 5.0 inch Display Mode Transmissive/ Normally Black
Number of Pixels 1024(RGB)*600 Number of pin 30
Viewing direction ALL O’CLOCK Connecting type plugging type
Active Area 107.83（W）*64.7（H） Luminance 600cd/㎡ /Brightness is selectable

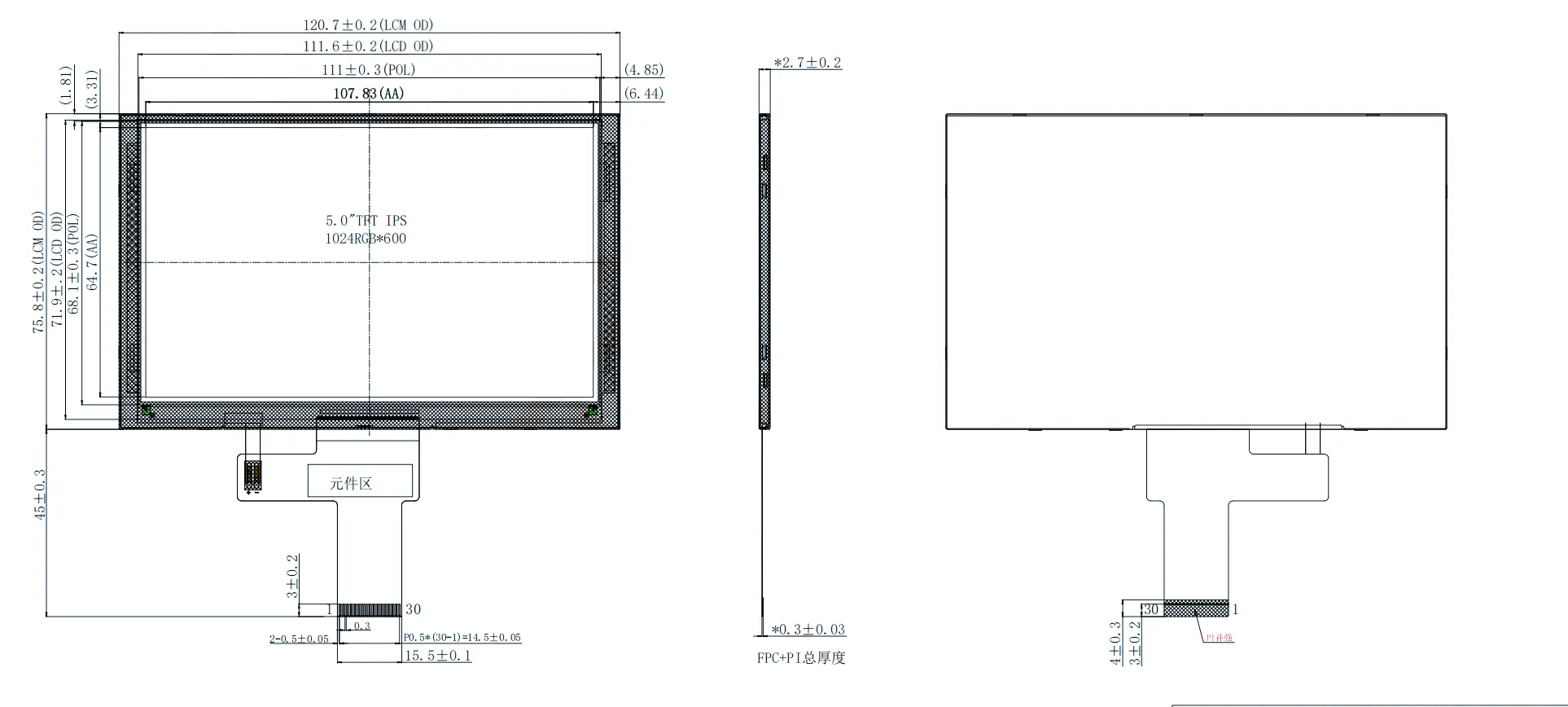

Dimensional Outline 120.7（W）*75.8（H）*2.7（T） Backlight leds 12 pcs
LCM Driver IC ST72325 Backlight type white LED backlight
Contrast Ratio 1200 operating temperature -30----85°C
Display Colors 16.7M Storage Temperature -40----90°C

5.0 inch IPS LCD Screen 1024x600 incell with touch MIPI


Note:

The above products are our standard items. The pictures, parameters and other information listed on the website are for reference only. The specific details should be based on our product specification documents. We have a wide range of product models with complete interfaces. If you need the specification documents or other customized services, please contact our business department. We will be more than happy to serve you.
